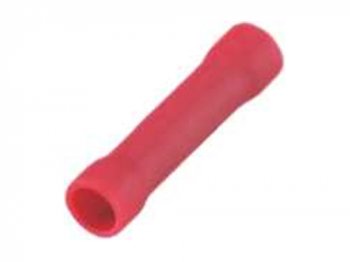

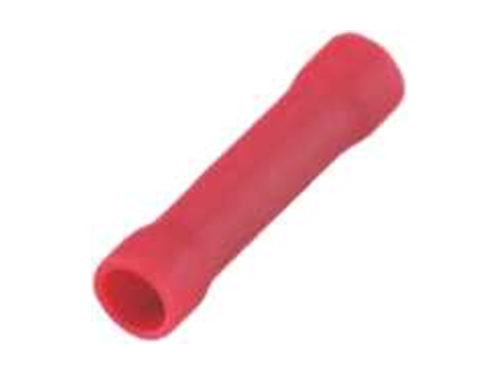

长形全绝缘中间接头

电线规格 WIRE RANGE

型号 ITEM NO.

尺寸 DIMENSION mm(inch)

材料

MATERIAL

包装/只 QTY BAG

mm²

(A.W.G.)

L

D

d1

F

T

0.5-1.5

(22-16)

BVT1

24.8(.976)

4.0 (.157)

1.7 (.067)

15.0(.591)

0.75(.030)

COPPER TUBULAR

1000

1.5-2.5

(16-14)

BVT2

24.8 (.976)

4.5 (.177)

2.3 (.091)

15.0(.591)

0.8(.031)

COPPER TUBULAR

1000

4-6

(12-10)

BVT5

25.0 (.992)

6.3 (.248)

3.4 (.134)

15.0(.591)

1.0(.039)

COPPER TUBULAR

500

8

(8)

BVT8

37.0(1.457)

8.5 (.335)

4.6(.181)

21.0 (.827)

1.2(.047)

COPPER TUBULAR

100

14

(6)

BVT14

45.0(1.772)

10.5 (.413)

5.9 (.232)

26.0 (1.023)

1.5(0.59)

COPPER TUBULAR

100

22

(4)

BVT 22

52.5 (2.069)

12.4 (.488)

7.8 (.307)

29.0(1.142)

1.75 (0.69)

COPPER TUBULAR

100

38

(2)

BVT 38

55.0 (2.165)

15.5 (.610)

9.5 (.374)

32.0 (1.26)

1.85 (0.73)

COPPER TUBULAR

50
