短形裸中间接头
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191

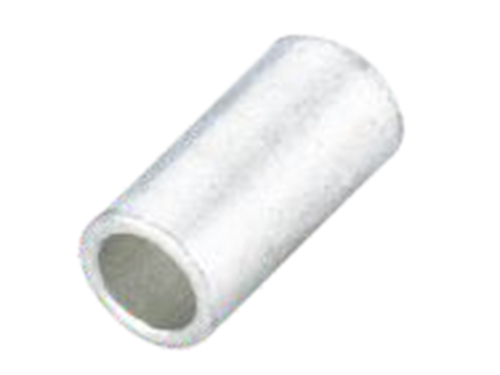

DIN 46341 PARALLEL SPLICE CONNECTORS
NON - INSULATED
Material
Terminal Body: Copper Tubular 紫铜管
Plating: Tin 镀锡
|
电线规格 WIRE RANGE |
型号 ITEM NO. |
尺寸 DIMENSION mm(inch) |
包装/只 QTY BAG |
||
|
mm2 (A.W.G.) |
I |
d |
s |
||
|
0.5-1.0 (22-16) |
DPNT1 |
8.0 (.315) |
1.6 (.063) |
0.8 (.031) |
1000 |
|
1.0-2.5 (16-14) |
DPNT2.5 |
8.0 (.315) |
2.3 (.091) |
0.8 (.031) |
1000 |
|
2.5-6 (12-10) |
DPNT6 |
9.0 (.354) |
3.6 (.142) |
1.0 (.039) |
1000 |
|
6-10 (10-8) |
DPNT10 |
10.0 (.394) |
4.5 (.177) |
1.1 (.043) |
500 |
|
10-16 (8-6) |
DPNT16 |
11.0 (.433) |
5.8 (.228) |
1.2 (.047) |
500 |
|
16-25 (6-4) |
DPNT25 |
14.0 (.551) |
7.5 (.295) |
1.5 (.059) |
250 |
|
25-35 (4-2) |
DPNT35 |
16.0 (.630) |
9.0 (.354) |
1.6 (.063) |
200 |
|
35-50 (2-0) |
DPNT50 |
19.0 (.748) |
11.0 (.433) |
1.8 (.071) |
50 |
|
50-70 (0-2/0) |
DPNT70 |
19.0 (.748) |
13.0 (.512) |
2.0 (.079) |
50 |
|
70-95 (2/0-3/0) |
DPNT95 |
20.0 (.787) |
15.0 (.591) |
2.5 (.098) |
25 |
|
95-120 (3/0-4/0) |
DPNT120 |
22.0 (.866) |
16.5 (.650) |
3.0 (.118) |
25 |
|
120-150 (4/0-5/0) |
DPNT150 |
26.0 (1.024) |
19.0 (.748) |
3.2 (.126) |
10 |
