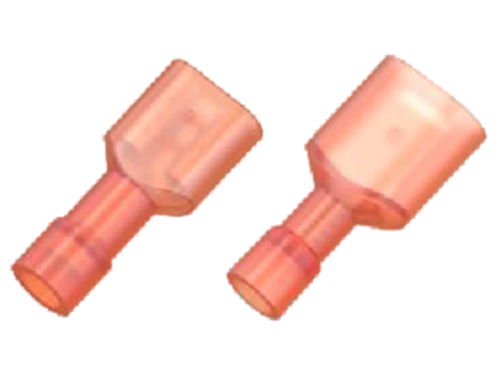

公/母尼龙全绝缘端子

电綫规格

WIRE RANGE

型号 ITEM NO.

接插规格

NEMA TAB mm(inch)

COUPLERS

尺寸 DIMENSION mm(inch)

包装只 QTY BAG

mm²

(A.W.G.)

w

F

L

B

D

d1

T

0.5-1.5 (22-16)

FDFN1-110(5)

0.5X2.Q

(.020X.110)

FEMALE

3.2 (.126)

6.4 (252)

19.5 (.768)

11.0 (.433)

4.1 (.161)

1.7 (.067)

0.3 (.012)

1000

FDFN1-110(8)

0.8 X 2.8

(.032X.110)

FEMALE

1000

FDFN1-187(5)

0.5X4.75

(.020 X.187)

FEMALE

5.0 (.197)

6.5 (256)

202 (.795)

0.35 (.014)

1000

FDFN1-187(8)

0.8X4.75 (.032X.187)

FEMALE

1000

FDFN1-250

0.8X6.35

(.032 X.250)

FEMALE

6.6 (.260)

7.5 (.295)

22.0 (.886)

11.0 (.433)

4.1 (.161)

1.7 (.067)

0.4 (.016)

1000

MDFN1-250

MALE

6.35 (.250)

7.7 (.303)

24.0 (.945)

500

1.5-2.5 (16-14)

FDFN2-2S0

FEMALE

6.6 (.260)

7.5 (.295)

22.0 (.886)

11.0 (.433)

4.5 (.177)

2.3 (.091)

0.4 (.016)

1000

MDFN2-2S0

MALE

6.35 (.250)

7.7 (.303)

24.0 (.945)

500

4-6

(12-10)

FDFN5-250

FEMALE

6.6 (.260)

7.5 (.295)

24.0 (.945)

13.0 (.512)

6.5 (.256)

3.4 (.134)

0.4 (.016)

1000

MDFN5-250

MALE

6.35 (.250)

7.7 (.303)

25.0 (.984)

500
