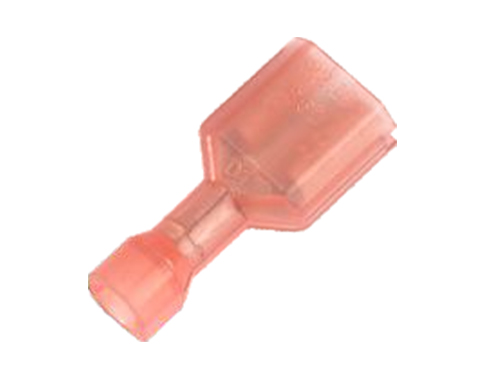

公/母尼龙全绝缘端子

FEMALE/MALE QUICK DISCONNECTS

NYLON - FULLY INSULATED

Material

Insulation: Nylon 尼龙

Terminal Body: Brass 黄铜

Plating: Tin 镀锡

电綫规格 WIRE RANGE	型号 ITEM NO.	接插规格 NEMA TAB mm(inch)	COUPLERS	尺寸 DIMENSION mm(lnch)							包装/只 QTY BAG
mm2 (A.W.G.)				w	F	L	B	D	c	T
0.5-0.75 (22-18)	FDFNY1-110(S)A	0.5x2.8 (.020x.110)	FEMALE	3.4 (.134)	6.2 (.244)	19.1 (.752)	9.3 (.366)	3.2 (.126)	1.5 (.059)	0.3 (.012)	1000
	FDFNY1-110(8)A	0.8x2.8 (.O32x.11O)
	FDFNY1-187(5)A	0.5x4.75 (.020x.187)		5.1 (.201)	6.5 (.256)	22.0(.866)	10.5 (.413)	3.6 (.142)		0.35 (.014)	1000
	FDFNY1-187(8)A	0.8x4.75 (.032X.187)
	FDFNY1-250A	0.8x6.35 (.032X.250)		6.8 (.268)	8.0 (.315)					0.4 (.016)	1000
1.5-2.5 (16-14)	FDFNY2-187(5)A	0.5x4.75 (.020X.187)		5.1 (.201)	6.5 (.256)	22.0 (.866)	10.5(.413)	4.3 (.169)	2.1 (.083)	0.35 (.014)	1000
	FDFNY2-187(8)A	0.8x4.75 (.032X.187)
	FDFNY2-250A	0.8x6.35 (.032X.250)		6.8 (.268)	8.0 (.315)					0.4 (.016)	1000
