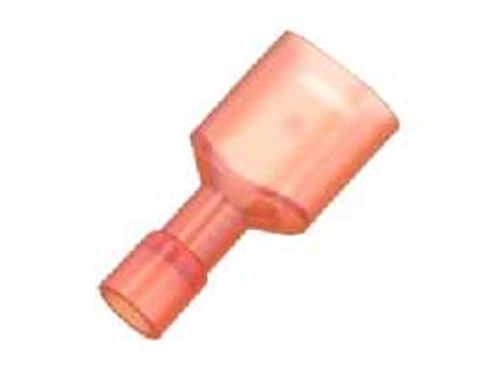

MALE QUICK DISCONNECTS
NYLON - FULLY INSULATED(DOUBLE CRIMP)
Material
Insulation: Nylon 尼龙
Metallic Sleeve: Copper 易进型铜套
lerminal Body: Brass 黄鈿
Plating: Un 镀镉
|
电线规格 WIRE RANGE |
SI号 ITEM NO. |
接插规格 NEMATAB |
尺寸 DIMENSION mm(inch) |
包装/只 QTY BAG |
|||||||
|
mm2 (A.W.G.) |
Thickness X Width mm inch |
w |
F |
L |
B |
D |
d1 |
T |
|||
|
0.5-1.5 (22-16) |
MDFNYD1-187(5) |
0.5X4.75 |
.020X.187 |
4.8 (.189) |
6.5 (.256) |
22.0 (.866) |
11.0 (.413) |
4.1 (.161) |
1.7 (.067) |
0.4 (.016) |
500 |
|
MDFNYD1-187(8) |
0.8X4.75 |
.032X.187 |
|||||||||
|
MDFNYD1-250 |
0.8X6.35 |
.032 X.250 |
6.35 (.250) |
7.7 (.303) |
24.0 (.945) |
||||||
|
1.5-2.5 (16-14) |
MDFNYD2-187(5) |
0.5X4.75 |
.020X.187 |
4.8 (.189) |
6.5 (.256) |
22.0 (.866) |
11.0 (.413) |
5.0 (.197) |
2.3 (.091) |
0.4 (.016) |
|
|
MDFNYD2-187(8) |
0.8X4.75 |
.032X.1S7 |
|||||||||
|
MDFNYD2-250 |
0.8X6.35 |
.032 X.250 |
6.35 (.250) |
7.7 (.303) |
24.0 (.945) |
||||||
|
4-6 (12-10) |
MDFNYD5-250 |
0.8X6.35 |
.032 X.250 |
6.35 (250) |
7.7 (.303) |
26.0 (1.024) |
13.0 (.512) |
6.3 (.248) |
3.4 (.134) |
0.4 (.016) |
|
