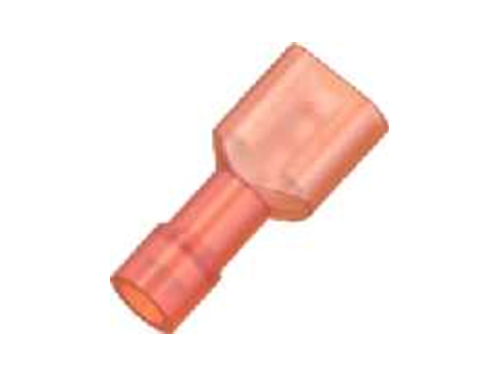

母尼龙全绝缘端子(双压接)
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
FEMALE QUICK DISCONNECTS
NYLON - FULLY INSULATED (DOUBLE CRIMP)
Material
Insulation: Nylon 尼龙
Metallic Sleeve: Copper 易进型铜套
lerminal Body: Brass 黄铜
Plating: Tin 镀锡
|
电线规格 WIRE RANGE |
型号 ITEM NO. |
接插规格 NEMATAB |
尺寸 DIMENSION mm(lnch) |
包装/只 QTY BAG |
|||||||||
|
mm2 (A.W.G.) |
|||||||||||||
|
Thickness X Width mm inch |
w |
F |
L |
B |
D |
d1 |
T |
FIG |
|||||
|
0.5-1.5 (22-16) |
FDFNYD1-110(5) |
0.5X2.8 |
.020X.110 |
3.2 (.126) |
6.5 (.256) |
19.5 (.768) |
11.0 (.433) |
4.1 (.161) |
1.7 (.067) |
0.3 (.012) |
1 |
1000 |
|
|
FDFNYD1-110(8) |
0.8X2.8 |
.032X.110 |
3.2 (.126) |
||||||||||
|
FDFNYD1-187(5) |
0.5X4.75 |
.020X.187 |
5.0 (.197) |
6.4 (.252) |
202 (.795) |
0.35(.014) |
2 |
||||||
|
FDFNYD1-187(8) |
0.8X4.75 |
.032X.187 |
5.0 (.197) |
||||||||||
|
FDFNYD1-250 |
0.8X6.35 |
.032 X.250 |
6.6 (.260) |
7.5 (.295) |
21.5 (.846) |
0.4 (.016) |
1 |
||||||
|
1.5-2.5 (16-14) |
FDFNYD2-187(5) |
0.5X4.75 |
.020X.187 |
5.0 (.197) |
6.4 (.252) |
202 (.795) |
11.0 (.433) |
5.0 (.197) |
2.3 (.091) |
0.35(.014) |
2 |
1000 |
|
|
FDFNYD2-187(8) |
0.8X4.75 |
.032X.187 |
5.0 (.197) |
||||||||||
|
FDFNYD2-2S0 |
0.8X6.35 |
.032 X.250 |
6.6 (.260) |
7.5 (.295) |
21.5 (.846) |
0.4 (.016) |
1 |
||||||
|
4-6 (12-10) |
FDFNYD5-250 |
0.8X6.35 |
.032 X.250 |
6.6 (260) |
7.5 (.295) |
242 (.953) |
13.0 (.512) |
6.3 (.248) |
3.4 (.134) |
0.4 (.016) |
2 |
500 |
|
