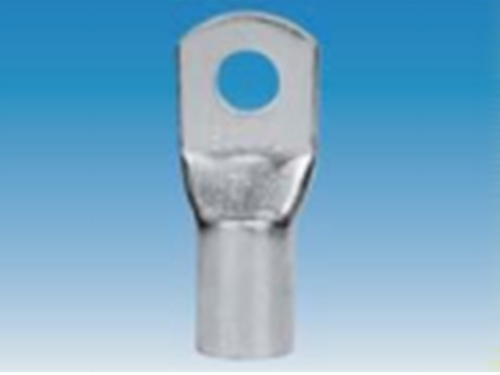

B-SC铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线， 有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0002-3001 |
B-SC1.5-4 |
4.2 |
3.4 |
1.8 |
8.0 |
5.0 |
16.0 |
|
LY0002-3002 |
B-SC1.5-5 |
5.2 |
3.4 |
1.8 |
10.0 |
5.0 |
17.0 |
|
LY0002-3003 |
B-SC1.5-6 |
6.5 |
3.4 |
1.8 |
10.0 |
5.0 |
18.0 |
|
LY0002-3004 |
B-SC2.5-4 |
4.2 |
3.7 |
2.4 |
8.0 |
7.0 |
18.0 |
|
LY0002-3005 |
B-SC2.5-5 |
5.2 |
3.7 |
2.4 |
10.0 |
7.0 |
20.0 |
|
LY0002-3006 |
B-SC2.5-6 |
6.5 |
3.7 |
2.4 |
10.0 |
7.0 |
20.0 |
|
LY0002-3007 |
B-SC2.5-8 |
8.4 |
3.7 |
2.4 |
12.5 |
7.0 |
23.0 |
|
LY0002-3008 |
B- SC 4 - 4 |
4.2 |
4.5 |
3.1 |
10.0 |
7.0 |
20.0 |
|
LY0002-3009 |
B- SC 4 - 5 |
5.2 |
4.5 |
3.1 |
10.0 |
7.0 |
20.0 |
|
LY0002-3010 |
B- SC 4 - 6 |
6.5 |
4.5 |
3.1 |
10.0 |
7.0 |
20.0 |
|
LY0002-3011 |
B- SC 4 - 8 |
8.4 |
4.5 |
3.1 |
12.5 |
7.0 |
23.0 |
|
LY0002-3012 |
B- SC 6 - 4 |
4.2 |
5.2 |
3.8 |
10.0 |
9.0 |
24.0 |
|
LY0002-3013 |
B- SC 6 - 5 |
5.2 |
5.2 |
3.8 |
10.0 |
9.0 |
24.0 |
|
LY0002-3014 |
B- SC 6 - 6 |
6.5 |
5.2 |
3.8 |
12.0 |
9.0 |
24.0 |
|
LY0002-3015 |
B- SC 6 - 8 |
8.4 |
5.2 |
3.8 |
12.5 |
9.0 |
26.0 |
|
LY0002-3016 |
B- SC 6 - 10 |
10.5 |
5.9 |
4.0 |
15.0 |
9.0 |
28.0 |
|
LY0002-3017 |
B- SC 10 - 5 |
5.2 |
5.9 |
4.5 |
12.0 |
9.0 |
25.0 |
|
LY0002-3018 |
B- SC 10 - 6 |
6.5 |
5.9 |
4.5 |
12.0 |
9.0 |
25.0 |
|
LY0002-3019 |
B- SC 10 - 8 |
8.4 |
5.9 |
4.5 |
12.5 |
9.0 |
27.0 |
|
LY0002-3020 |
B- SC 10 - 10 |
10.5 |
5.9 |
4.5 |
15.0 |
9.0 |
29.0 |
|
LY0002-3021 |
B- SC 10 - 12 |
13.0 |
5.9 |
4.5 |
17.0 |
9.0 |
31.0 |
|
LY0002-3022 |
B- SC 16 - 5 |
5.2 |
6.8 |
5.4 |
12.0 |
12.0 |
30.0 |
|
LY0002-3023 |
B- SC 16 - 6 |
6.5 |
6.8 |
5.4 |
12.0 |
12.0 |
30.0 |
|
LY0002-3024 |
B- SC 16 - 8 |
8.4 |
6.8 |
5.4 |
12.5 |
12.0 |
30.0 |
|
LY0002-3025 |
B- SC 16 - 10 |
10.5 |
6.8 |
5.4 |
16.0 |
12.0 |
33.0 |
|
LY0002-3026 |
B- SC 16 - 12 |
13.0 |
6.8 |
5.4 |
17.0 |
12.0 |
35.0 |
|
LY0002-3027 |
B- SC 25 - 5 |
5.2 |
8.4 |
6.8 |
13.0 |
12.0 |
33.0 |
|
LY0002-3028 |
B- SC 25 - 6 |
6.5 |
8.4 |
6.8 |
13.0 |
12.0 |
33.0 |
|
LY0002-3029 |
B- SC 25 - 8 |
8.4 |
8.4 |
6.8 |
15.0 |
12.0 |
33.0 |
|
LY0002-3030 |
B- SC 25 - 10 |
10.5 |
8.4 |
6.8 |
18.0 |
12.0 |
34.0 |
|
LY0002-3031 |
B- SC 25 - 12 |
13.0 |
8.4 |
6.8 |
18.0 |
12.0 |
35.0 |
|
LY0002-3032 |
B- SC 25 - 14 |
15.0 |
8.4 |
6.8 |
20.0 |
12.0 |
38.0 |
|
LY0002-3033 |
B- SC 35 - 5 |
5.2 |
10.2 |
8.2 |
16.0 |
14.0 |
38.0 |
|
LY0002-3034 |
B- SC 35 - 6 |
6.5 |
10.2 |
8.2 |
16.0 |
14.0 |
38.0 |
|
LY0002-3035 |
B- SC 35 - 8 |
8.4 |
10.2 |
8.2 |
16.0 |
14.0 |
38.0 |
|
LY0002-3036 |
B- SC 35 - 10 |
10.5 |
10.2 |
8.2 |
18.0 |
14.0 |
39.0 |
|
LY0002-3037 |
B- SC 35 - 12 |
13.0 |
10.2 |
8.2 |
19.0 |
14.0 |
40.5 |
|
LY0002-3038 |
B- SC 35 - 14 |
15.0 |
10.2 |
8.2 |
20.0 |
14.0 |
42.0 |
|
LY0002-3039 |
B- SC 50 - 6 |
6.5 |
11.9 |
9.5 |
17.5 |
16.0 |
45.0 |
|
LY0002-3040 |
B- SC 50 - 8 |
8.4 |
11.9 |
9.5 |
17.5 |
16.0 |
45.0 |
|
LY0002-3041 |
B- SC 50 - 10 |
10.5 |
11.9 |
9.5 |
17.5 |
16.0 |
45.0 |
|
LY0002-3042 |
B- SC 50 - 12 |
13.0 |
11.9 |
9.5 |
20.0 |
16.0 |
45.0 |
|
LY0002-3043 |
B- SC 50 - 14 |
15.0 |
11.9 |
9.5 |
22.0 |
16.0 |
46.0 |
|
LY0002-3044 |
B- SC 50 - 16 |
17.0 |
11.9 |
9.5 |
24.0 |
16.0 |
47.0 |
|
LY0002-3045 |
B- SC 70 - 8 |
8.4 |
14.0 |
11.2 |
20.5 |
20.0 |
52.0 |
|
LY0002-3046 |
B- SC 70 - 10 |
10.5 |
14.0 |
11.2 |
20.5 |
20.0 |
52.0 |
|
LY0002-3047 |
B- SC 70 - 12 |
13.0 |
14.0 |
11.2 |
20.5 |
20.0 |
52.0 |
|
LY0002-3048 |
B- SC 70 - 14 |
15.0 |
14.0 |
11.2 |
20.5 |
20.0 |
52.0 |
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0002-3049 |
B- SC 70 - 16 |
17.0 |
14.1 |
11.2 |
25.0 |
20.0 |
53.0 |
|
LY0002-3050 |
B- SC 95 - 8 |
8.4 |
16.7 |
13.5 |
24.5 |
23.0 |
58.0 |
|
LY0002-3051 |
B- SC 95 - 10 |
10.5 |
16.7 |
13.5 |
24.5 |
23.0 |
58.0 |
|
LY0002-3052 |
B- SC 95 - 12 |
13.0 |
16.7 |
13.5 |
24.5 |
23.0 |
58.0 |
|
LY0002-3053 |
B- SC 95 - 14 |
15.0 |
16.7 |
13.5 |
24.5 |
23.0 |
58.0 |
|
LY0002-3054 |
B- SC 95 - 16 |
17.0 |
16.7 |
13.5 |
24.5 |
23.0 |
58.0 |
|
LY0002-3055 |
B- SC 120 - 8 |
8.4 |
18.6 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-3056 |
B-SC120-10 |
10.5 |
18.6 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-3057 |
B-SC120-12 |
13.0 |
18.6 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-3058 |
B-SC120-14 |
15.0 |
18.6 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-3059 |
B-SC120-16 |
17.0 |
18.6 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-3060 |
B-SC120-20 |
21.0 |
18.6 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-3061 |
B- SC 150 - 8 |
8.4 |
20.4 |
16.5 |
30.0 |
26.0 |
70.0 |
|
LY0002-3062 |
B-SC150-10 |
10.5 |
20.4 |
16.5 |
30.0 |
26.0 |
70.0 |
|
LY0002-3063 |
B-SC150-12 |
13.0 |
20.4 |
16.5 |
30.0 |
26.0 |
70.0 |
|
LY0002-3064 |
B-SC150-14 |
15.0 |
20.4 |
16.5 |
30.0 |
26.0 |
70.0 |
|
LY0002-3065 |
B-SC150-16 |
17.0 |
20.4 |
16.5 |
30.0 |
26.0 |
70.0 |
|
LY0002-3066 |
B-SC150-20 |
21.0 |
20.4 |
16.5 |
30.0 |
26.0 |
70.0 |
|
LY0002-3067 |
B-SC185-10 |
10.5 |
22.6 |
18.5 |
33.0 |
32.0 |
75.0 |
|
LY0002-3068 |
B-SC185-12 |
13.0 |
22.6 |
18.5 |
33.0 |
32.0 |
75.0 |
|
LY0002-3069 |
B-SC185-14 |
15.0 |
22.6 |
18.5 |
33.0 |
32.0 |
75.0 |
|
LY0002-3070 |
B-SC185-16 |
17.0 |
22.6 |
18.5 |
33.0 |
32.0 |
75.0 |
|
LY0002-3071 |
B-SC185-20 |
21.0 |
22.6 |
18.5 |
33.0 |
32.0 |
75.0 |
|
LY0002-3072 |
B-SC240-10 |
10.5 |
25.5 |
21.0 |
37.2 |
38.0 |
90.0 |
|
LY0002-3073 |
B-SC240-12 |
13.0 |
25.5 |
21.0 |
37.2 |
38.0 |
90.0 |
|
LY0002-3074 |
B-SC240-14 |
15.0 |
25.5 |
21.0 |
37.2 |
38.0 |
90.0 |
|
LY0002-3075 |
B-SC240-16 |
17.0 |
25.5 |
21.0 |
37.2 |
38.0 |
90.0 |
|
LY0002-3076 |
B-SC240-20 |
21.0 |
25.5 |
21.0 |
37.2 |
38.0 |
90.0 |
|
LY0002-3077 |
B-SC300-10 |
10.5 |
28.8 |
23.5 |
42.0 |
42.0 |
98.0 |
|
LY0002-3078 |
B-SC300-12 |
13.0 |
28.8 |
23.5 |
42.0 |
42.0 |
98.0 |
|
LY0002-3079 |
B-SC300-14 |
15.0 |
28.8 |
23.5 |
42.0 |
42.0 |
98.0 |
|
LY0002-3080 |
B-SC300-16 |
17.0 |
28.8 |
23.5 |
42.0 |
42.0 |
98.0 |
|
LY0002-3081 |
B-SC300-20 |
21.0 |
28.8 |
23.5 |
42.0 |
42.0 |
98.0 |
|
LY0002-3082 |
B-SC400-10 |
10.5 |
35.1 |
28.5 |
51.0 |
44.0 |
110.0 |
|
LY0002-3083 |
B-SC400-12 |
13.0 |
35.1 |
28.5 |
51.0 |
44.0 |
110.0 |
|
LY0002-3084 |
B-SC400-14 |
15.0 |
35.1 |
28.5 |
51.0 |
44.0 |
110.0 |
|
LY0002-3085 |
B-SC400-16 |
17.0 |
35.1 |
28.5 |
51.0 |
44.0 |
110.0 |
|
LY0002-3086 |
B-SC400-20 |
21.0 |
35.1 |
28.5 |
51.0 |
44.0 |
110.0 |
|
LY0002-3087 |
B-SC500-10 |
10.5 |
37.4 |
30.0 |
54.5 |
48.0 |
120.0 |
|
LY0002-3088 |
B-SC500-12 |
13.0 |
37.4 |
30.0 |
54.5 |
48.0 |
120.0 |
|
LY0002-3089 |
B-SC500-14 |
15.0 |
37.4 |
30.0 |
54.5 |
48.0 |
120.0 |
|
LY0002-3090 |
B-SC500-16 |
17.0 |
37.4 |
30.0 |
54.5 |
48.0 |
120.0 |
|
LY0002-3091 |
B-SC500-20 |
21.0 |
37.4 |
30.0 |
54.5 |
48.0 |
120.0 |
|
LY0002-3092 |
B-SC630-10 |
10.5 |
43.2 |
35.0 |
63.0 |
56.0 |
140.0 |
|
LY0002-3093 |
B-SC630-12 |
13.0 |
43.2 |
35.0 |
63.0 |
56.0 |
140.0 |
|
LY0002-3094 |
B-SC630-14 |
15.0 |
43.2 |
35.0 |
63.0 |
56.0 |
140.0 |
|
LY0002-3095 |
B-SC630-16 |
17.0 |
43.2 |
35.0 |
63.0 |
56.0 |
140.0 |
|
LY0002-3096 |
B-SC630-20 |
21.0 |
43.2 |
35.0 |
63.0 |
56.0 |
140.0 |
