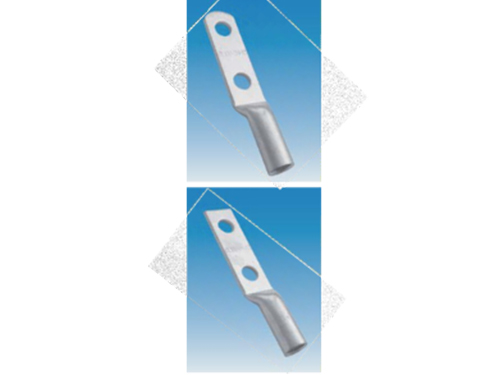

CL-2H铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途： 端子就是用于实现电气连接的一种配件产品， 工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的， 它其实就是一段封在绝缘塑料里面的金属片， 两端都有孔可以插入导线， 有螺丝用于紧固或者松开。比如两根导线， 有时需要连接， 有时又需要断开， 这时就可以用端子把它们连接起来， 并且可以随时断开， 而不必把它们焊接起来或者缠绕在一起， 很方便快捷。
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
||||
|
2015-2018 |
φd |
W |
B |
L |
H |
|||
|
LY0005-1001 |
CL 14 - 2 H- 6 |
6.4 |
8.8 |
5.8 |
13.0 |
28.5 |
117.5 |
45.0 |
|
LY0005-1002 |
CL 22 - 2 H- 8 |
8.4 |
11.3 |
7.7 |
16.0 |
28.5 |
119.2 |
45.0 |
|
LY0005-1003 |
CL 38 - 2 H- 10 |
10.5 |
12.4 |
9.8 |
18.3 |
31.7 |
120.0 |
45.0 |
|
LY0005-1004 |
CL 38 - 2 H- 12 |
13.0 |
12.4 |
9.8 |
18.3 |
31.7 |
120.0 |
45.0 |
|
LY0005-1005 |
CL 60 - 2 H- 10 |
10.5 |
14.0 |
11.0 |
20.5 |
40.0 |
130.0 |
45.0 |
|
LY0005-1006 |
CL 60 - 2 H- 12 |
13.0 |
14.0 |
11.0 |
20.5 |
40.0 |
130.0 |
45.0 |
|
LY0005-1007 |
CL 70 - 2 H- 10 |
10.5 |
15.0 |
12.0 |
21.4 |
40.0 |
130.0 |
45.0 |
|
LY0005-1008 |
CL 70 - 2 H- 12 |
13.0 |
15.0 |
12.0 |
21.4 |
40.0 |
130.0 |
45.0 |
|
LY0005-1009 |
CL 80 - 2 H- 12 |
13.0 |
16.0 |
13.0 |
23.2 |
40.0 |
130.0 |
45.0 |
|
LY0005-1010 |
CL 100 - 2 H- 12 |
13.0 |
18.0 |
14.0 |
26.0 |
42.0 |
132.0 |
45.0 |
|
LY0005-1011 |
CL 125 - 2 H- 12 |
13.0 |
20.0 |
16.0 |
29.0 |
42.0 |
135.0 |
45.0 |
|
LY0005-1012 |
CL 150 - 2 H- 12 |
13.0 |
22.0 |
17.0 |
31.0 |
50.0 |
150.0 |
45.0 |
|
LY0005-1013 |
CL 180 - 2 H- 12 |
13.0 |
23.0 |
18.2 |
33.0 |
50.0 |
150.0 |
45.0 |
|
LY0005-1014 |
CL 200 - 2 H- 12 |
13.0 |
26.0 |
20.0 |
37.0 |
52.5 |
150.0 |
45.0 |
|
LY0005-1015 |
CL 250 - 2 H- 12 |
13.0 |
28.0 |
22.0 |
40.0 |
50.0 |
150.0 |
45.0 |
|
LY0005-1016 |
CL 325 - 2 H- 12 |
13.0 |
32.0 |
25.0 |
46.0 |
68.0 |
180.0 |
45.0 |
|
LY0005-1017 |
CL 400 - 2 H- 12 |
13.0 |
37.0 |
30.0 |
54.0 |
60.0 |
180.0 |
45.0 |
|
LY0005-1018 |
CL 500 - 2 H- 12 |
13.0 |
40.0 |
31.0 |
57.5 |
60.0 |
180.0 |
45.0 |
|
LY0005-1019 |
B- CL 14 - 2 H- 6 |
6.4 |
8.3 |
5.8 |
13.0 |
28.5 |
117.5 |
45.0 |
|
LY0005-1020 |
B- CL 22 - 2 H- 8 |
8.4 |
10.7 |
7.7 |
16.0 |
28.5 |
119.2 |
45.0 |
|
LY0005-1021 |
B-CL38-2H-10 |
10.5 |
11.9 |
9.8 |
17.5 |
31.7 |
120.0 |
45.0 |
|
LY0005-1022 |
B-CL38-2H-12 |
13.0 |
11.9 |
9.8 |
17.5 |
31.7 |
120.0 |
45.0 |
|
LY0005-1023 |
B-CL60-2H-10 |
10.5 |
13.5 |
11.0 |
19.5 |
40.0 |
130.0 |
45.0 |
|
LY0005-1024 |
B-CL60-2H-12 |
13.0 |
13.5 |
11.0 |
19.5 |
40.0 |
130.0 |
45.0 |
|
LY0005-1025 |
B-CL70-2H-10 |
10.5 |
14.5 |
12.0 |
21.4 |
40.0 |
130.0 |
45.0 |
|
LY0005-1026 |
B-CL70-2H-12 |
13.0 |
14.5 |
12.0 |
21.4 |
40.0 |
130.0 |
45.0 |
|
LY0005-1027 |
B-CL80-2H-12 |
13.0 |
15.5 |
13.0 |
23.2 |
40.0 |
130.0 |
45.0 |
|
LY0005-1028 |
B-CL100-2H-12 |
13.0 |
17.3 |
14.0 |
26.0 |
42.0 |
132.0 |
45.0 |
|
LY0005-1029 |
B-CL125-2H-12 |
13.0 |
19.3 |
16.0 |
28.0 |
42.0 |
135.0 |
45.0 |
|
LY0005-1030 |
B-CL150-2H-12 |
13.0 |
21.1 |
17.0 |
31.0 |
50.0 |
150.0 |
45.0 |
|
LY0005-1031 |
B-CL180-2H-12 |
13.0 |
22.1 |
18.2 |
33.0 |
50.0 |
150.0 |
45.0 |
|
LY0005-1032 |
B-CL200-2H-12 |
13.0 |
24.9 |
20.0 |
36.0 |
50.0 |
150.0 |
45.0 |
|
LY0005-1033 |
B-CL250-2H-12 |
13.0 |
26.9 |
22.0 |
39.0 |
50.0 |
150.0 |
45.0 |
|
LY0005-1034 |
B-CL325-2H-12 |
13.0 |
30.7 |
25.0 |
45.0 |
68.0 |
180.0 |
45.0 |
|
LY0005-1035 |
B-CL400-2H-12 |
13.0 |
35.7 |
30.0 |
54.0 |
60.0 |
180.0 |
45.0 |
|
LY0005-1036 |
B-CL500-2H-12 |
13.0 |
38.4 |
31.0 |
56.0 |
60.0 |
180.0 |
45.0 |
