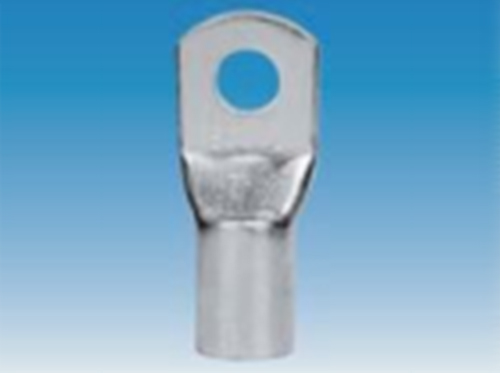

C-SC铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0002-4001 |
C-SC1.5-4 |
4.2 |
3.3 |
1.8 |
8.0 |
5.0 |
16.0 |
|
LY0002-4002 |
C-SC1.5-5 |
5.2 |
3.3 |
1.8 |
10.0 |
5.0 |
17.0 |
|
LY0002-4003 |
C-SC1.5-6 |
6.5 |
3.3 |
1.8 |
10.0 |
5.0 |
18.0 |
|
LY0002-4004 |
C-SC2.5-4 |
4.2 |
3.6 |
2.4 |
8.0 |
7.0 |
18.0 |
|
LY0002-4005 |
C-SC2.5-5 |
5.2 |
3.6 |
2.4 |
10.0 |
7.0 |
20.0 |
|
LY0002-4006 |
C-SC2.5-6 |
6.5 |
3.6 |
2.4 |
10.0 |
7.0 |
20.0 |
|
LY0002-4007 |
C-SC2.5-8 |
8.4 |
3.6 |
2.4 |
12.5 |
7.0 |
23.0 |
|
LY0002-4008 |
C- SC 4 - 4 |
4.2 |
4.4 |
3.1 |
10.0 |
7.0 |
20.0 |
|
LY0002-4009 |
C- SC 4 - 5 |
5.2 |
4.4 |
3.1 |
10.0 |
7.0 |
20.0 |
|
LY0002-4010 |
C- SC 4 - 6 |
6.5 |
4.4 |
3.1 |
10.0 |
7.0 |
20.0 |
|
LY0002-4011 |
C- SC 4 - 8 |
8.4 |
4.4 |
3.1 |
12.5 |
7.0 |
23.0 |
|
LY0002-4012 |
C- SC 6 - 4 |
4.2 |
5.1 |
3.8 |
10.0 |
9.0 |
24.0 |
|
LY0002-4013 |
C- SC 6 - 5 |
5.2 |
5.1 |
3.8 |
10.0 |
9.0 |
24.0 |
|
LY0002-4014 |
C- SC 6 - 6 |
6.5 |
5.1 |
3.8 |
12.0 |
9.0 |
24.0 |
|
LY0002-4015 |
C- SC 6 - 8 |
8.4 |
5.1 |
3.8 |
12.5 |
9.0 |
26.0 |
|
LY0002-4016 |
C- SC 6 - 10 |
10.5 |
5.7 |
4.0 |
15.0 |
9.0 |
28.0 |
|
LY0002-4017 |
C- SC 10 - 5 |
5.2 |
5.8 |
4.5 |
12.0 |
9.0 |
25.0 |
|
LY0002-4018 |
C- SC 10 - 6 |
6.5 |
5.8 |
4.5 |
12.0 |
9.0 |
25.0 |
|
LY0002-4019 |
C- SC 10 - 8 |
8.4 |
5.8 |
4.5 |
12.5 |
9.0 |
27.0 |
|
LY0002-4020 |
C- SC 10 - 10 |
10.5 |
5.8 |
4.5 |
15.0 |
9.0 |
29.0 |
|
LY0002-4021 |
C- SC 10 - 12 |
13.0 |
5.8 |
4.5 |
17.0 |
9.0 |
31.0 |
|
LY0002-4022 |
C- SC 16 - 5 |
5.2 |
6.6 |
5.4 |
12.0 |
12.0 |
30.0 |
|
LY0002-4023 |
C- SC 16 - 6 |
6.5 |
6.6 |
5.4 |
12.0 |
12.0 |
30.0 |
|
LY0002-4024 |
C- SC 16 - 8 |
8.4 |
6.6 |
5.4 |
12.5 |
12.0 |
30.0 |
|
LY0002-4025 |
C- SC 16 - 10 |
10.5 |
6.6 |
5.4 |
16.0 |
12.0 |
33.0 |
|
LY0002-4026 |
C- SC 16 - 12 |
13.0 |
6.6 |
5.4 |
17.0 |
12.0 |
35.0 |
|
LY0002-4027 |
C- SC 25 - 5 |
5.2 |
8.3 |
6.8 |
13.0 |
12.0 |
33.0 |
|
LY0002-4028 |
C- SC 25 - 6 |
6.5 |
8.3 |
6.8 |
13.0 |
12.0 |
33.0 |
|
LY0002-4029 |
C- SC 25 - 8 |
8.4 |
8.3 |
6.8 |
15.0 |
12.0 |
33.0 |
|
LY0002-4030 |
C- SC 25 - 10 |
10.5 |
8.3 |
6.8 |
18.0 |
12.0 |
34.0 |
|
LY0002-4031 |
C- SC 25 - 12 |
13.0 |
8.3 |
6.8 |
18.0 |
12.0 |
35.0 |
|
LY0002-4032 |
C- SC 25 - 14 |
15.0 |
8.3 |
6.8 |
20.0 |
12.0 |
38.0 |
|
LY0002-4033 |
C- SC 35 - 5 |
5.2 |
10.0 |
8.2 |
16.0 |
14.0 |
38.0 |
|
LY0002-4034 |
C- SC 35 - 6 |
6.5 |
10.0 |
8.2 |
16.0 |
14.0 |
38.0 |
|
LY0002-4035 |
C- SC 35 - 8 |
8.4 |
10.0 |
8.2 |
16.0 |
14.0 |
38.0 |
|
LY0002-4036 |
C- SC 35 - 10 |
10.5 |
10.0 |
8.2 |
18.0 |
14.0 |
39.0 |
|
LY0002-4037 |
C- SC 35 - 12 |
13.0 |
10.0 |
8.2 |
19.0 |
14.0 |
40.5 |
|
LY0002-4038 |
C- SC 35 - 14 |
15.0 |
10.0 |
8.2 |
20.0 |
14.0 |
42.0 |
|
LY0002-4039 |
C- SC 50 - 6 |
6.5 |
11.6 |
9.5 |
17.0 |
16.0 |
45.0 |
|
LY0002-4040 |
C- SC 50 - 8 |
8.4 |
11.6 |
9.5 |
17.0 |
16.0 |
45.0 |
|
LY0002-4041 |
C- SC 50 - 10 |
10.5 |
11.6 |
9.5 |
17.0 |
16.0 |
45.0 |
|
LY0002-4042 |
C- SC 50 - 12 |
13.0 |
11.6 |
9.5 |
20.0 |
16.0 |
45.0 |
|
LY0002-4043 |
C- SC 50 - 14 |
15.0 |
11.6 |
9.5 |
22.0 |
16.0 |
46.0 |
|
LY0002-4044 |
C- SC 50 - 16 |
17.0 |
11.6 |
9.5 |
24.0 |
16.0 |
47.0 |
|
LY0002-4045 |
C- SC 70 - 8 |
8.4 |
13.8 |
11.2 |
20.4 |
20.0 |
52.0 |
|
LY0002-4046 |
C- SC 70 - 10 |
10.5 |
13.8 |
11.2 |
20.4 |
20.0 |
52.0 |
|
LY0002-4047 |
C- SC 70 - 12 |
13.0 |
13.8 |
11.2 |
20.4 |
20.0 |
52.0 |
|
LY0002-4048 |
C- SC 70 - 14 |
15.0 |
13.8 |
11.2 |
20.4 |
20.0 |
52.0 |
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0002-4049 |
C-SC70-16 |
17.0 |
13.8 |
11.2 |
25.0 |
20.0 |
53.0 |
|
LY0002-4050 |
C-SC95-8 |
8.4 |
16.4 |
13.5 |
24.0 |
23.0 |
58.0 |
|
LY0002-4051 |
C-SC95-10 |
10.5 |
16.4 |
13.5 |
24.0 |
23.0 |
58.0 |
|
LY0002-4052 |
C-SC95-12 |
13.0 |
16.4 |
13.5 |
24.0 |
23.0 |
58.0 |
|
LY0002-4053 |
C-SC95-14 |
15.0 |
16.4 |
13.5 |
24.0 |
23.0 |
58.0 |
|
LY0002-4054 |
C-SC95-16 |
17.0 |
16.4 |
13.5 |
24.0 |
23.0 |
58.0 |
|
LY0002-4055 |
C-SC120-8 |
8.4 |
18.2 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-4056 |
C-SC120-10 |
10.5 |
18.2 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-4057 |
C-SC120-12 |
13.0 |
18.2 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-4058 |
C-SC120-14 |
15.0 |
18.2 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-4059 |
C-SC120-16 |
17.0 |
18.2 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-4060 |
C-SC120-20 |
21.0 |
18.2 |
15.0 |
27.0 |
22.0 |
63.0 |
|
LY0002-4061 |
C-SC150-8 |
8.4 |
19.9 |
16.5 |
29.5 |
26.0 |
70.0 |
|
LY0002-4062 |
C-SC150-10 |
10.5 |
19.9 |
16.5 |
29.5 |
26.0 |
70.0 |
|
LY0002-4063 |
C-SC150-12 |
13.0 |
19.9 |
16.5 |
29.5 |
26.0 |
70.0 |
|
LY0002-4064 |
C-SC150-14 |
15.0 |
19.9 |
16.5 |
29.5 |
26.0 |
70.0 |
|
LY0002-4065 |
C-SC150-16 |
17.0 |
19.9 |
16.5 |
29.5 |
26.0 |
70.0 |
|
LY0002-4066 |
C-SC150-20 |
21.0 |
19.9 |
16.5 |
29.5 |
26.0 |
70.0 |
|
LY0002-4067 |
C-SC185-10 |
10.5 |
22.1 |
18.5 |
32.5 |
32.0 |
75.0 |
|
LY0002-4068 |
C-SC185-12 |
13.0 |
22.1 |
18.5 |
32.5 |
32.0 |
75.0 |
|
LY0002-4069 |
C-SC185-14 |
15.0 |
22.1 |
18.5 |
32.5 |
32.0 |
75.0 |
|
LY0002-4070 |
C-SC185-16 |
17.0 |
22.1 |
18.5 |
32.5 |
32.0 |
75.0 |
|
LY0002-4071 |
C-SC185-20 |
21.0 |
22.1 |
18.5 |
32.5 |
32.0 |
75.0 |
|
LY0002-4072 |
C-SC240-10 |
10.5 |
25.0 |
21.0 |
37.0 |
38.0 |
90.0 |
|
LY0002-4073 |
C-SC240-12 |
13.0 |
25.0 |
21.0 |
37.0 |
38.0 |
90.0 |
|
LY0002-4074 |
C-SC240-14 |
15.0 |
25.0 |
21.0 |
37.0 |
38.0 |
90.0 |
|
LY0002-4075 |
C-SC240-16 |
17.0 |
25.0 |
21.0 |
37.0 |
38.0 |
90.0 |
|
LY0002-4076 |
C-SC240-20 |
21.0 |
25.0 |
21.0 |
37.0 |
38.0 |
90.0 |
|
LY0002-4077 |
C-SC300-10 |
10.5 |
28.2 |
23.5 |
41.5 |
42.0 |
98.0 |
|
LY0002-4078 |
C-SC300-12 |
13.0 |
28.2 |
23.5 |
41.5 |
42.0 |
98.0 |
|
LY0002-4079 |
C-SC300-14 |
15.0 |
28.2 |
23.5 |
41.5 |
42.0 |
98.0 |
|
LY0002-4080 |
C-SC300-16 |
17.0 |
28.2 |
23.5 |
41.5 |
42.0 |
98.0 |
|
LY0002-4081 |
C-SC300-20 |
21.0 |
28.2 |
23.5 |
41.5 |
42.0 |
98.0 |
|
LY0002-4082 |
C-SC400-10 |
10.5 |
34.3 |
28.5 |
50.5 |
44.0 |
110.0 |
|
LY0002-4083 |
C-SC400-12 |
13.0 |
34.3 |
28.5 |
50.5 |
44.0 |
110.0 |
|
LY0002-4084 |
C-SC400-14 |
15.0 |
34.3 |
28.5 |
50.5 |
44.0 |
110.0 |
|
LY0002-4085 |
C-SC400-16 |
17.0 |
34.3 |
28.5 |
50.5 |
44.0 |
110.0 |
|
LY0002-4086 |
C-SC400-20 |
21.0 |
34.3 |
28.5 |
50.5 |
44.0 |
110.0 |
|
LY0002-4087 |
C-SC500-10 |
10.5 |
36.5 |
30.0 |
53.5 |
48.0 |
120.0 |
|
LY0002-4088 |
C-SC500-12 |
13.0 |
36.5 |
30.0 |
53.5 |
48.0 |
120.0 |
|
LY0002-4089 |
C-SC500-14 |
15.0 |
36.5 |
30.0 |
53.5 |
48.0 |
120.0 |
|
LY0002-4090 |
C-SC500-16 |
17.0 |
36.5 |
30.0 |
53.5 |
48.0 |
120.0 |
|
LY0002-4091 |
C-SC500-20 |
21.0 |
36.5 |
30.0 |
53.5 |
48.0 |
120.0 |
|
LY0002-4092 |
C-SC630-10 |
10.5 |
42.2 |
35.0 |
62.5 |
56.0 |
140.0 |
|
LY0002-4093 |
C-SC630-12 |
13.0 |
42.2 |
35.0 |
62.5 |
56.0 |
140.0 |
|
LY0002-4094 |
C-SC630-14 |
15.0 |
42.2 |
35.0 |
62.5 |
56.0 |
140.0 |
|
LY0002-4095 |
C-SC630-16 |
17.0 |
42.2 |
35.0 |
62.5 |
56.0 |
140.0 |
|
LY0002-4096 |
C-SC630-20 |
21.0 |
42.2 |
35.0 |
62.5 |
56.0 |
140.0 |
