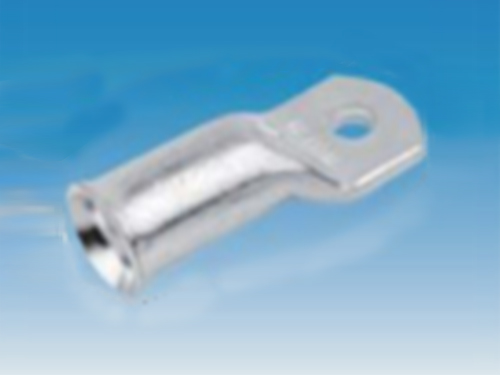

GCL铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线， 有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0003-2001 |
GCL1.5-3 |
3.2 |
3.7 |
1.8 |
8.0 |
11.0 |
21.0 |
|
LY0003-2002 |
GCL1.5-4 |
4.3 |
3.7 |
1.8 |
8.0 |
11.0 |
22.0 |
|
LY0003-2003 |
GCL1.5-5 |
5.3 |
3.7 |
1.8 |
10.0 |
12.0 |
24.0 |
|
LY0003-2004 |
GCL1.5-6 |
6.5 |
3.7 |
1.8 |
10.0 |
12.0 |
25.0 |
|
LY0003-2005 |
GCL2.5-3 |
3.2 |
3.9 |
2.3 |
8.0 |
12.0 |
22.0 |
|
LY0003-2006 |
GCL2.5-4 |
4.3 |
3.9 |
2.3 |
8.0 |
12.0 |
23.0 |
|
LY0003-2007 |
GCL2.5-5 |
5.3 |
3.9 |
2.3 |
10.0 |
12.0 |
25.0 |
|
LY0003-2008 |
GCL2.5-6 |
6.5 |
3.9 |
2.3 |
10.0 |
12.0 |
25.0 |
|
LY0003-2009 |
GCL2.5-8 |
8.3 |
4.3 |
2.3 |
12.5 |
12.0 |
27.5 |
|
LY0003-2010 |
GCL 4 - 4 |
4.3 |
4.7 |
3.0 |
10.0 |
13.0 |
26.0 |
|
LY0003-2011 |
GCL 4 - 5 |
5.3 |
4.7 |
3.0 |
10.0 |
13.0 |
27.0 |
|
LY0003-2012 |
GCL 4 - 6 |
6.5 |
4.7 |
3.0 |
10.0 |
13.0 |
28.0 |
|
LY0003-2013 |
GCL 4 - 8 |
8.3 |
4.7 |
3.0 |
12.5 |
13.0 |
29.0 |
|
LY0003-2014 |
GCL 6 - 4 |
4.3 |
5.9 |
4.0 |
10.0 |
18.5 |
33.6 |
|
LY0003-2015 |
GCL 6 - 5 |
5.3 |
5.9 |
4.0 |
10.0 |
18.5 |
33.6 |
|
LY0003-2016 |
GCL 6 - 6 |
6.5 |
5.9 |
4.0 |
11.0 |
18.5 |
33.6 |
|
LY0003-2017 |
GCL 6 - 8 |
8.3 |
5.9 |
4.0 |
12.5 |
18.5 |
36.3 |
|
LY0003-2018 |
GCL 6 - 10 |
10.3 |
6.2 |
4.0 |
15.0 |
18.5 |
37.3 |
|
LY0003-2019 |
GCL 10 - 5 |
5.3 |
6.6 |
4.5 |
11.0 |
22.0 |
39.0 |
|
LY0003-2020 |
GCL 10 - 6 |
6.5 |
6.6 |
4.5 |
11.0 |
22.0 |
39.0 |
|
LY0003-2021 |
GCL 10 - 8 |
8.3 |
6.6 |
4.5 |
12.5 |
22.0 |
39.0 |
|
LY0003-2022 |
GCL 10 - 10 |
10.3 |
6.9 |
4.5 |
16.0 |
22.0 |
43.1 |
|
LY0003-2023 |
GCL 10 - 12 |
12.7 |
6.9 |
4.5 |
18.0 |
21.0 |
43.1 |
|
LY0003-2024 |
GCL 16 - 5 |
5.3 |
7.5 |
5.5 |
11.0 |
23.0 |
39.7 |
|
LY0003-2025 |
GCL 16 - 6 |
6.5 |
7.5 |
5.5 |
11.0 |
23.0 |
39.7 |
|
LY0003-2026 |
GCL 16 - 8 |
8.3 |
7.5 |
5.5 |
12.5 |
22.0 |
39.7 |
|
LY0003-2027 |
GCL 16 - 10 |
10.3 |
7.5 |
5.5 |
16.0 |
23.0 |
44.9 |
|
LY0003-2028 |
GCL 16 - 12 |
12.7 |
8.1 |
5.5 |
18.0 |
22.0 |
44.9 |
|
LY0003-2029 |
GCL 25 - 5 |
5.3 |
9.1 |
6.7 |
13.0 |
28.0 |
47.2 |
|
LY0003-2030 |
GCL 25 - 6 |
6.5 |
9.1 |
6.7 |
13.0 |
28.0 |
47.2 |
|
LY0003-2031 |
GCL 25 - 8 |
8.3 |
9.1 |
6.7 |
13.0 |
28.0 |
47.2 |
|
LY0003-2032 |
GCL 25 - 10 |
10.3 |
9.1 |
6.7 |
16.0 |
29.0 |
51.9 |
|
LY0003-2033 |
GCL 25 - 12 |
12.7 |
9.1 |
6.7 |
18.0 |
28.0 |
51.9 |
|
LY0003-2034 |
GCL 25 - 14 |
14.8 |
9.1 |
6.7 |
20.0 |
28.0 |
53.9 |
|
LY0003-2035 |
GCL 35 - 5 |
5.3 |
11.0 |
8.6 |
16.0 |
31.0 |
52.6 |
|
LY0003-2036 |
GCL 35 - 6 |
6.5 |
11.0 |
8.6 |
16.0 |
31.0 |
52.6 |
|
LY0003-2037 |
GCL 35 - 8 |
8.3 |
11.0 |
8.6 |
16.0 |
31.0 |
52.6 |
|
LY0003-2038 |
GCL 35 - 10 |
10.3 |
11.0 |
8.6 |
16.7 |
31.0 |
56.5 |
|
LY0003-2039 |
GCL 35 - 12 |
12.7 |
11.0 |
8.6 |
18.0 |
31.0 |
56.5 |
|
LY0003-2040 |
GCL 35 - 14 |
14.8 |
11.0 |
8.6 |
20.0 |
31.0 |
58.5 |
|
LY0003-2041 |
GCL 35 - 16 |
16.5 |
11.0 |
8.6 |
23.0 |
31.0 |
60.5 |
|
LY0003-2042 |
GCL 50 - 5 |
5.3 |
12.4 |
9.5 |
18.0 |
32.0 |
56.0 |
|
LY0003-2043 |
GCL 50 - 6 |
6.5 |
12.4 |
9.5 |
18.0 |
32.0 |
56.0 |
|
LY0003-2044 |
GCL 50 - 8 |
8.3 |
12.4 |
9.5 |
18.0 |
32.0 |
56.0 |
|
LY0003-2045 |
GCL 50 - 10 |
10.3 |
12.4 |
9.5 |
18.0 |
32.0 |
59.0 |
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0003-2046 |
GCL 50 - 12 |
12.7 |
12.4 |
9.5 |
19.0 |
32.0 |
59.0 |
|
LY0003-2047 |
GCL 50 - 14 |
14.8 |
12.4 |
9.5 |
21.0 |
34.0 |
67.8 |
|
LY0003-2048 |
GCL 50 - 16 |
16.5 |
12.4 |
9.5 |
23.0 |
34.0 |
67.8 |
|
LY0003-2049 |
GCL 70 - 5 |
5.3 |
15.0 |
12.0 |
22.0 |
36.5 |
67.4 |
|
LY0003-2050 |
GCL 70 - 6 |
6.3 |
15.0 |
12.0 |
22.0 |
36.5 |
67.4 |
|
LY0003-2051 |
GCL 70 - 8 |
8.3 |
15.0 |
12.0 |
22.0 |
36.5 |
67.4 |
|
LY0003-2052 |
GCL 70 - 10 |
10.3 |
15.0 |
12.0 |
22.0 |
36.5 |
67.4 |
|
LY0003-2053 |
GCL 70 - 12 |
12.7 |
15.0 |
12.0 |
22.0 |
36.5 |
67.4 |
|
LY0003-2054 |
GCL 70 - 14 |
14.8 |
15.0 |
12.0 |
22.0 |
36.5 |
70.0 |
|
LY0003-2055 |
GCL 70 - 16 |
16.5 |
15.0 |
12.0 |
24.0 |
35.0 |
70.0 |
|
LY0003-2056 |
GCL 95 - 8 |
8.3 |
17.0 |
13.4 |
25.0 |
37.5 |
69.7 |
|
LY0003-2057 |
GCL 95 - 10 |
10.3 |
17.0 |
13.4 |
25.0 |
37.5 |
69.7 |
|
LY0003-2058 |
GCL 95 - 12 |
12.7 |
17.0 |
13.4 |
25.0 |
37.5 |
69.7 |
|
LY0003-2059 |
GCL 95 - 14 |
14.8 |
17.0 |
13.4 |
25.0 |
37.5 |
73.3 |
|
LY0003-2060 |
GCL 95 - 16 |
16.8 |
17.0 |
13.4 |
25.0 |
37.5 |
73.3 |
|
LY0003-2061 |
GCL 95 - 20 |
20.9 |
17.0 |
13.4 |
28.0 |
34.5 |
73.3 |
|
LY0003-2062 |
GCL 120 - 8 |
8.3 |
19.0 |
15.0 |
27.5 |
38.0 |
75.0 |
|
LY0003-2063 |
GCL 120 - 10 |
10.3 |
19.0 |
15.0 |
27.5 |
38.0 |
75.0 |
|
LY0003-2064 |
GCL 120 - 12 |
12.7 |
19.0 |
15.0 |
27.5 |
38.0 |
75.0 |
|
LY0003-2065 |
GCL 120 - 14 |
14.8 |
19.0 |
15.0 |
27.5 |
38.0 |
79.0 |
|
LY0003-2066 |
GCL 120 - 16 |
16.5 |
19.0 |
15.0 |
27.5 |
38.0 |
79.0 |
|
LY0003-2067 |
GCL 120 - 20 |
20.9 |
19.0 |
15.0 |
27.5 |
38.0 |
79.0 |
|
LY0003-2068 |
GCL 150 - 10 |
10.3 |
21.2 |
16.5 |
30.8 |
42.0 |
82.0 |
|
LY0003-2069 |
GCL 150 - 12 |
12.7 |
21.2 |
16.5 |
30.8 |
42.0 |
82.0 |
|
LY0003-2070 |
GCL 150 - 14 |
14.8 |
21.2 |
16.5 |
30.8 |
42.0 |
82.0 |
|
LY0003-2071 |
GCL 150 - 16 |
16.5 |
21.2 |
16.5 |
30.8 |
42.0 |
86.4 |
|
LY0003-2072 |
GCL 150 - 20 |
20.9 |
21.2 |
16.5 |
30.8 |
42.0 |
86.4 |
|
LY0003-2073 |
GCL 185 - 10 |
10.3 |
23.0 |
19.0 |
34.0 |
45.0 |
88.0 |
|
LY0003-2074 |
GCL 185 - 12 |
12.7 |
23.0 |
19.0 |
34.0 |
45.0 |
88.0 |
|
LY0003-2075 |
GCL 185 - 14 |
14.8 |
23.0 |
19.0 |
34.0 |
45.0 |
88.0 |
|
LY0003-2076 |
GCL 185 - 16 |
16.5 |
23.0 |
19.0 |
34.0 |
45.0 |
91.2 |
|
LY0003-2077 |
GCL 185 - 20 |
20.9 |
23.0 |
19.0 |
34.0 |
45.0 |
91.2 |
|
LY0003-2078 |
GCL 240 - 10 |
10.3 |
26.5 |
21.0 |
38.6 |
53.0 |
106.4 |
|
LY0003-2079 |
GCL 240 - 12 |
12.7 |
26.5 |
21.0 |
38.6 |
53.0 |
106.4 |
|
LY0003-2080 |
GCL 240 - 14 |
14.8 |
26.5 |
21.0 |
38.6 |
53.0 |
106.4 |
|
LY0003-2081 |
GCL 240 - 16 |
16.5 |
26.5 |
21.0 |
38.6 |
53.0 |
106.4 |
|
LY0003-2082 |
GCL 240 - 20 |
20.9 |
26.5 |
21.0 |
38.6 |
53.0 |
106.4 |
|
LY0003-2083 |
GCL 300 - 12 |
12.7 |
30.0 |
24.5 |
43.8 |
57.0 |
113.0 |
|
LY0003-2084 |
GCL 300 - 14 |
14.8 |
30.0 |
24.5 |
43.8 |
57.0 |
113.0 |
|
LY0003-2085 |
GCL 300 - 16 |
16.5 |
30.0 |
24.5 |
43.8 |
57.0 |
113.0 |
|
LY0003-2086 |
GCL 300 - 20 |
20.9 |
30.0 |
24.5 |
43.8 |
57.0 |
113.0 |
|
LY0003-2087 |
GCL 400 - 12 |
12.7 |
35.0 |
27.0 |
49.0 |
59.0 |
119.0 |
|
LY0003-2088 |
GCL 400 - 14 |
14.8 |
35.0 |
27.0 |
49.0 |
59.0 |
119.0 |
|
LY0003-2089 |
GCL 400 - 16 |
16.5 |
35.0 |
27.0 |
49.0 |
59.0 |
119.0 |
|
LY0003-2090 |
GCL 400 - 20 |
20.9 |
35.0 |
27.0 |
49.0 |
59.0 |
119.0 |
