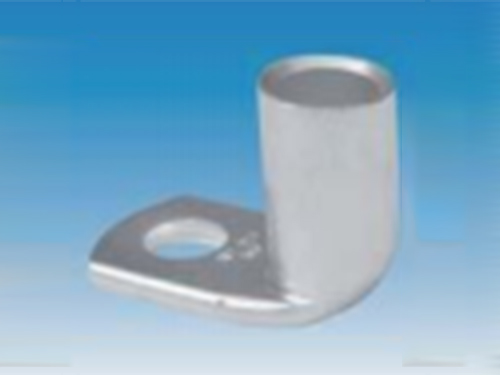

GPH90°铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线， 有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0015-0001 |
GPH90-6/5 |
5.3 |
6.5 |
3.5 |
10.0 |
14.0 |
22.5 |
|
LY0015-0002 |
GPH90-6/6 |
6.4 |
6.5 |
3.5 |
12.0 |
14.0 |
24.0 |
|
LY0015-0003 |
GPH90-6/8 |
8.5 |
6.5 |
3.5 |
15.0 |
14.0 |
27.5 |
|
LY0015-0004 |
GPH90-6/10 |
10.5 |
6.5 |
3.5 |
16.0 |
14.0 |
29.5 |
|
LY0015-0005 |
GPH90-10/5 |
5.3 |
7.0 |
4.5 |
12.0 |
16.0 |
23.0 |
|
LY0015-0006 |
GPH90-10/6 |
6.4 |
7.0 |
4.5 |
12.0 |
16.0 |
24.0 |
|
LY0015-0007 |
GPH90-10/8 |
8.5 |
7.0 |
4.5 |
15.0 |
16.0 |
28.0 |
|
LY0015-0008 |
GPH90-10/10 |
10.5 |
7.0 |
4.5 |
18.0 |
16.0 |
29.5 |
|
LY0015-0009 |
GPH90-16/5 |
5.3 |
8.5 |
5.5 |
12.0 |
20.0 |
22.5 |
|
LY0015-0010 |
GPH90-16/6 |
6.4 |
8.5 |
5.5 |
14.0 |
20.0 |
24.0 |
|
LY0015-0011 |
GPH90-16/8 |
8.5 |
8.5 |
5.5 |
15.0 |
20.0 |
28.0 |
|
LY0015-0012 |
GPH90-16/10 |
10.5 |
8.5 |
5.5 |
18.0 |
20.0 |
31.0 |
|
LY0015-0013 |
GPH90-16/12 |
13.0 |
8.5 |
5.5 |
19.0 |
20.0 |
32.0 |
|
LY0015-0014 |
GPH90-25/6 |
6.4 |
10.0 |
6.9 |
15.0 |
21.0 |
27.5 |
|
LY0015-0015 |
GPH90-25/8 |
8.4 |
10.0 |
6.9 |
16.0 |
21.0 |
32.5 |
|
LY0015-0016 |
GPH90-25/10 |
10.5 |
10.0 |
6.9 |
18.0 |
21.0 |
32.5 |
|
LY0015-0017 |
GPH90-25/12 |
13.0 |
10.0 |
6.9 |
19.0 |
21.0 |
34.0 |
|
LY0015-0018 |
GPH90-35/6 |
6.4 |
12.0 |
8.5 |
17.0 |
24.0 |
28.5 |
|
LY0015-0019 |
GPH90-35/8 |
8.5 |
12.0 |
8.5 |
17.0 |
24.0 |
34.0 |
|
LY0015-0020 |
GPH90-35/10 |
10.5 |
12.0 |
8.5 |
20.0 |
24.0 |
34.0 |
|
LY0015-0021 |
GPH90-35/12 |
13.0 |
12.0 |
8.5 |
22.0 |
24.0 |
40.5 |
|
LY0015-0022 |
GPH90-50/6 |
6.4 |
14.0 |
10.0 |
20.0 |
28.5 |
37.0 |
|
LY0015-0023 |
GPH90-50/8 |
8.4 |
14.0 |
10.0 |
20.0 |
28.5 |
40.5 |
|
LY0015-0024 |
GPH90-50/10 |
10.5 |
14.0 |
10.0 |
20.0 |
28.5 |
40.5 |
|
LY0015-0025 |
GPH90-50/12 |
13.0 |
14.0 |
10.0 |
23.0 |
28.5 |
42.5 |
|
LY0015-0026 |
GPH90-50/16 |
17.0 |
14.0 |
10.0. |
28.0 |
28.5 |
50.5 |
|
LY0015-0027 |
GPH90-70/8 |
8.5 |
16.5 |
12.0 |
24.0 |
31.0 |
43.0 |
|
LY0015-0028 |
GPH90-7010 |
10.5 |
16.5 |
12.0 |
24.0 |
31.0 |
43.0 |
|
PART N O |
ITEM N O |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0015-0029 |
GPH90-70/12 |
13.0 |
16.5 |
12.0 |
24.0 |
31.0 |
44.5 |
|
LY0015-0030 |
GPH90-70/16 |
17.0 |
16.5 |
12.0 |
28.0 |
31.0 |
53.0 |
|
LY0015-0031 |
GPH90-70/20 |
21.0 |
16.5 |
12.0 |
30.0 |
31.0 |
59.0 |
|
LY0015-0032 |
GPH90-95/8 |
8.5 |
18.0 |
13.5 |
26.0 |
35.0 |
44.5 |
|
LY0015-0033 |
GPH90-95/10 |
10.5 |
18.0 |
13.5 |
26.0 |
35.0 |
44.5 |
|
LY0015-0034 |
GPH90-95/12 |
13.0 |
18.0 |
13.5 |
26.0 |
35.0 |
46.5 |
|
LY0015-0035 |
GPH90-95/16 |
17.0 |
18.0 |
13.5 |
28.0 |
35.0 |
52.0 |
|
LY0015-0036 |
GPH90-95/20 |
21.0 |
18.0 |
13.5 |
30.5 |
35.0 |
59.0 |
|
LY0015-0037 |
GPH90-120/10 |
10.5 |
19.5 |
15.0 |
29.0 |
35.5 |
49.0 |
|
LY0015-0038 |
GPH90-120/12 |
13.0 |
19.5 |
15.0 |
29.0 |
35.5 |
49.0 |
|
LY0015-0039 |
GPH90-120/16 |
17.0 |
19.5 |
15.0 |
29.0 |
35.5 |
55.0 |
|
LY0015-0040 |
GPH90-120/20 |
21.0 |
19.5 |
15.0 |
30.5 |
35.5 |
61.0 |
|
LY0015-0041 |
GPH90-150/10 |
10.5 |
21.0 |
16.5 |
31.0 |
40.0 |
48.0 |
|
LY0015-0042 |
GPH90-150/12 |
13.0 |
21.0 |
16.5 |
31.0 |
40.0 |
51.0 |
|
LY0015-0043 |
GPH90-150/16 |
17.0 |
21.0 |
16.5 |
31.0 |
40.0 |
56.0 |
|
LY0015-0044 |
GPH90-150/20 |
21.0 |
21.0 |
16.5 |
34.0 |
40.0 |
61.5 |
|
LY0015-0045 |
GPH90-185/12 |
13.0 |
24.0 |
19.0 |
35.0 |
46.0 |
58.5 |
|
LY0015-0046 |
GPH90-185/16 |
17.0 |
24.0 |
19.0 |
35.0 |
46.0 |
58.5 |
|
LY0015-0047 |
GPH90-185/20 |
21.0 |
24.0 |
19.0 |
35.0 |
46.0 |
65.0 |
|
LY0015-0048 |
GPH90-240/12 |
13.0 |
26.0 |
21.0 |
40.0 |
50.0 |
54.0 |
|
LY0015-0049 |
GPH90-240/16 |
17.0 |
26.0 |
21.0 |
40.0 |
50.0 |
60.0 |
|
LY0015-0050 |
GPH90-240/20 |
21.0 |
26.0 |
21.0 |
40.0 |
50.0 |
67.8 |
|
LY0015-0051 |
GPH90-300/12 |
13.0 |
29.5 |
23.5 |
43.0 |
59.0 |
74.5 |
|
LY0015-0052 |
GPH90-300/16 |
17.0 |
29.5 |
23.5 |
43.0 |
59.0 |
64.0 |
|
LY0015-0053 |
GPH90-300/20 |
21.0 |
29.5 |
23.5 |
43.0 |
59.0 |
70.5 |
|
LY0015-0054 |
GPH90-400/12 |
13.0 |
34.0 |
27.0 |
49.0 |
62.0 |
79.0 |
|
LY0015-0055 |
GPH90-400/16 |
17.0 |
34.0 |
27.0 |
49.0 |
62.0 |
68.5 |
|
LY0015-0056 |
GPH90-400/20 |
21.0 |
34.0 |
27.0 |
49.0 |
62.0 |
75.0 |
