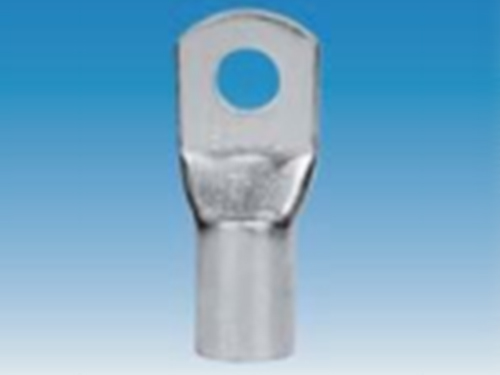

SC铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线，
有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
PART N O
ITEM
N O
φE
φD
DIMENSIONS
2015-2018
φd
W
B
L
LY0002-5001
SC-XB1.5-4
4.3
4.0
2.2
8.0
5.0
16.5
LY0002-5002
SC-XB1.5-5
5.3
4.0
2.2
8.0
5.0
16.5
LY0002-5003
SC-XB2.5-4
4.3
4.5
2.9
8.0
7.0
19.0
LY0002-5004
SC-XB2.5-5
5.3
4.5
2.9
8.0
7.0
21.0
LY0002-5005
SC-XB2.5-6
6.4
4.5
2.9
10.0
7.0
21.0
LY0002-5006
SC-XB2.5-8
8.4
4.5
2.9
13.0
7.0
23.0
LY0002-5007
SC- XB 4 - 4
4.3
5.2
3.6
10.0
7.0
21.0
LY0002-5008
SC- XB 4 - 5
5.3
5.2
3.6
10.0
7.0
21.0
LY0002-5009
SC- XB 4 - 6
6.4
5.2
3.6
10.0
7.0
21.0
LY0002-5010
SC- XB 4 - 8
8.4
5.2
3.6
13.0
7.0
24.0
LY0002-5011
SC- XB 6 - 4
4.3
6.0
4.2
10.0
9.0
23.5
LY0002-5012
SC- XB 6 - 5
5.3
6.0
4.2
10.0
9.0
23.5
LY0002-5013
SC- XB 6 - 6
6.4
6.0
4.2
10.0
9.0
26.0
LY0002-5014
SC- XB 6 - 8
8.4
6.0
4.2
12.0
9.0
26.0
LY0002-5015
SC- XB 6 - 10
10.5
6.0
4.2
16.0
9.0
34.0
LY0002-5016
SC- XB 10 - 5
5.3
7.0
5.0
12.4
9.0
27.0
LY0002-5017
SC- XB 10 - 6
6.4
7.0
5.0
12.4
9.0
27.0
LY0002-5018
SC- XB 10 - 8
8.4
7.0
5.0
12.4
9.0
28.0
LY0002-5019
SC- XB 10 - 10
10.5
7.0
5.0
18.0
9.0
34.5
LY0002-5020
SC- XB 10 - 12
13.0
7.0
5.0
18.5
9.0
39.5
LY0002-5021
SC- XB 16 - 4
4.3
7.8
5.8
12.4
12.0
31.0
LY0002-5022
SC- XB 16 - 5
5.3
7.8
5.8
12.4
12.0
31.0
LY0002-5023
SC- XB 16 - 6
6.4
7.8
5.8
12.4
12.0
31.0
LY0002-5024
SC- XB 16 - 8
8.4
7.8
5.8
12.4
12.0
31.0
LY0002-5025
SC- XB 16 - 10
10.5
7.8
5.8
16.0
12.0
34.0
LY0002-5026
SC- XB 16 - 12
13.0
7.8
5.8
19.5
12.0
42.0
LY0002-5027
SC- XB 25 - 5
5.3
9.5
7.5
14.0
12.0
32.0
LY0002-5028
SC- XB 25 - 6
6.4
9.5
7.5
14.0
12.0
32.0
LY0002-5029
SC- XB 25 - 8
8.4
9.5
7.5
18.0
12.0
34.0
LY0002-5030
SC- XB 25 - 10
10.5
9.5
7.5
17.5
12.0
37.0
LY0002-5031
SC- XB 25 - 12
13.0
9.5
7.5
20.5
12.0
45.0
LY0002-5032
SC- XB 35 - 6
6.4
11.4
8.6
16.5
15.0
38.0
LY0002-5033
SC- XB 35 - 8
8.4
11.4
8.6
16.5
15.0
38.0
LY0002-5034
SC- XB 35 - 10
10.5
11.4
8.6
17.5
15.0
41.0
LY0002-5035
SC- XB 35 - 12
13.0
11.4
8.6
18.0
15.0
47.5
LY0002-5036
SC- XB 50 - 6
6.4
12.6
9.6
18.0
16.0
43.5
LY0002-5037
SC- XB 50 - 8
8.4
12.6
9.6
18.0
16.0
44.0
LY0002-5038
SC- XB 50 - 10
10.5
12.6
9.6
18.0
16.0
44.0
LY0002-5039
SC- XB 50 - 12
13.0
12.6
9.6
18.0
16.0
44.0
LY0002-5040
SC- XB 50 - 14
15.0
12.6
9.6
25.0
16.0
55.5
LY0002-5041
SC- XB 50 - 16
17.0
12.6
9.6
26.0
16.0
60.0
LY0002-5042
SC- XB 70 - 6
6.4
15.0
12.0
21.8
18.0
50.0
LY0002-5043
SC- XB 70 - 8
8.4
15.0
12.0
21.8
18.0
50.0
LY0002-5044
SC- XB 70 - 10
10.5
15.0
12.0
21.8
18.0
50.0
LY0002-5045
SC- XB 70 - 12
13.0
15.0
12.0
21.8
18.0
50.0
PART NO
ITEM
NO
φE
φD
DIMENSIONS
2015-2018
φd
W
B
L
LY0002-5046
SC-XB70-14
15.0
15.0
12.0
21.8
18.0
59.0
LY0002-5047
SC-XB70-16
17.0
15.0
12.0
26.0
18.0
63.0
LY0002-5048
SC-XB95-5
5.3
17.4
13.5
25.0
20.0
55.5
LY0002-5049
SC-XB95-6
6.4
17.4
13.5
25.0
20.0
55.5
LY0002-5050
SC-XB95-8
8.4
17.4
13.5
25.0
20.0
55.5
LY0002-5051
SC-XB95-10
10.5
17.4
13.5
25.0
20.0
55.5
LY0002-5052
SC-XB95-12
13.0
17.4
13.5
25.0
20.0
55.5
LY0002-5053
SC-XB95-14
15.0
17.4
13.5
25.0
20.0
65.0
LY0002-5054
SC-XB95-16
17.0
17.4
13.5
27.0
20.0
69.5
LY0002-5055
SC-XB95-20
21.0
17.4
13.5
29.0
20.0
77.5
LY0002-5056
SC-XB120-8
8.4
19.8
15.0
28.4
22.0
60.0
LY0002-5057
SC-XB120-10
10.5
19.8
15.0
28.4
22.0
60.0
LY0002-5058
SC-XB120-12
13.0
19.8
15.0
28.4
22.0
60.0
LY0002-5059
SC-XB120-14
15.0
19.8
15.0
28.4
22.0
64.0
LY0002-5060
SC-XB120-16
17.0
19.8
15.0
28.4
22.0
64.0
LY0002-5061
SC-XB150-6
6.4
21.2
16.5
30.5
26.0
69.0
LY0002-5062
SC-XB150-8
8.4
21.2
16.5
30.5
26.0
69.0
LY0002-5063
SC-XB150-10
10.5
21.2
16.5
30.5
26.0
69.0
LY0002-5064
SC-XB150-12
13.0
21.2
16.5
30.5
26.0
69.0
LY0002-5065
SC-XB150-14
15.0
21.2
16.5
30.5
26.0
69.0
LY0002-5066
SC-XB150-16
17.0
21.2
16.5
30.5
26.0
69.0
LY0002-5067
SC-XB150-20
21.0
21.2
16.5
30.5
26.0
69.0
LY0002-5068
SC-XB185-10
10.5
23.5
18.5
34.0
32.0
78.0
LY0002-5069
SC-XB185-12
13.0
23.5
18.5
34.0
32.0
78.0
LY0002-5070
SC-XB185-14
15.0
23.5
18.5
34.0
32.0
78.0
LY0002-5071
SC-XB185-16
17.0
23.5
18.5
34.0
32.0
78.0
LY0002-5072
SC-XB185-20
21.0
23.5
18.5
34.0
32.0
78.0
LY0002-5073
SC-XB240-10
10.5
26.5
21.5
38.5
38.0
92.0
LY0002-5074
SC-XB240-12
13.0
26.5
21.5
38.5
38.0
92.0
LY0002-5075
SC-XB240-14
15.0
26.5
21.5
38.5
38.0
92.0
LY0002-5076
SC-XB240-16
17.0
26.5
21.5
38.5
38.0
92.0
LY0002-5077
SC-XB240-20
21.0
26.5
21.5
38.5
38.0
92.0
LY0002-5078
SC-XB300-12
13.0
30.0
23.5
43.0
42.0
101.0
LY0002-5079
SC-XB300-14
15.0
30.0
23.5
43.0
42.0
101.0
LY0002-5080
SC-XB300-16
17.0
30.0
23.5
43.0
42.0
101.0
LY0002-5081
SC-XB300-18
19.0
30.0
23.5
43.0
42.0
101.0
LY0002-5082
SC-XB300-20
21.0
30.0
23.5
43.0
42.0
101.0
LY0002-5083
SC-XB400-12
13.0
36.5
28.5
52.0
44.0
114.0
LY0002-5084
SC-XB400-16
17.0
36.5
28.5
52.0
44.0
114.0
LY0002-5085
SC-XB400-18
19.0
36.5
28.5
52.0
44.0
114.0
LY0002-5086
SC-XB400-20
21.0
36.5
28.5
52.0
44.0
114.0
LY0002-5087
SC-XB500-16
17.0
39.0
30.5
56.0
48.0
124.0
LY0002-5088
SC-XB500-18
19.0
39.0
30.5
56.0
48.0
124.0
LY0002-5089
SC-XB500-20
21.0
39.0
30.5
56.0
48.0
124.0
LY0002-5090
SC-XB600-20
21.0
55.0
45.0
65.0
56.0
144.0
