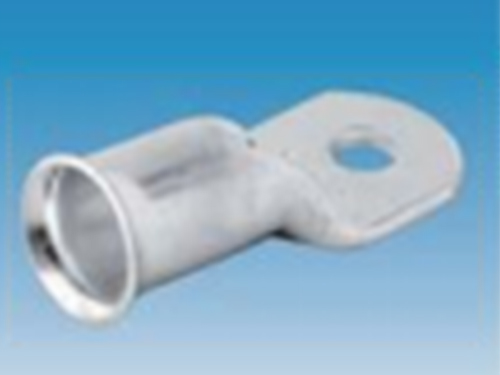

TU喇叭口铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线，有时需要连接， 有时又需要断开， 这时就可以用端子把它们连接起来， 并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
PART NO
ITEM NO
φE
φD
DIMENSIONS
2015-2018
φd
W
B
L
LY0013-0001
TU10-5
5.3
6.9
4.4
10.5
9.0
27.0
LY0013-0002
TU10-6
6.4
6.9
4.4
10.5
9.0
27.0
LY0013-0003
TU10-8
8.4
6.9
4.4
14.0
10.0
35.0
LY0013-0004
TU10-10
10.4
6.9
4.4
16.0
10.0
39.0
LY0013-0005
TU10-12
12.8
6.9
4.4
18.0
10.0
39.0
LY0013-0006
TU16-5
5.3
8.0
5.6
11.0
11.0
29.5
LY0013-0007
TU16-6
6.4
8.0
5.6
11.0
11.0
29.5
LY0013-0008
TU16-8
8.4
8.0
5.6
14.0
11.0
38.0
LY0013-0009
TU16-10
10.4
8.0
5.6
16.0
11.0
42.0
LY0013-0010
TU16-12
12.8
8.0
5.6
18.0
11.0
42.0
LY0013-0011
TU25-5
5.3
9.5
7.0
13.5
13.0
40.0
LY0013-0012
TU25-6
6.4
9.5
7.0
13.5
13.0
40.0
LY0013-0013
TU25-8
8.4
9.5
7.0
13.5
13.0
40.0
LY0013-0014
TU25-10
10.4
9.5
7.0
16.0
13.0
44.0
LY0013-0015
TU25-12
12.8
9.5
7.0
18.0
13.0
44.0
LY0013-0016
TU35-5
5.3
11.0
8.2
15.5
14.0
41.0
LY0013-0017
TU35-6
6.4
11.0
8.2
15.5
14.0
41.0
LY0013-0018
TU35-8
8.4
11.0
8.2
15.5
14.0
41.0
LY0013-0019
TU35-10
10.4
11.0
8.2
15.5
14.0
45.0
LY0013-0020
TU35-12
12.8
11.0
8.2
18.0
14.0
45.0
LY0013-0021
TU35-14
14.5
11.0
8.2
20.0
14.0
50.0
LY0013-0022
TU50-5
5.3
12.1
9.5
17.2
18.0
46.0
LY0013-0023
TU50-6
6.4
12.1
9.5
17.2
18.0
46.0
LY0013-0024
TU50-8
8.4
12.1
9.5
17.2
18.0
46.0
LY0013-0025
TU50-10
10.4
12.1
9.5
17.2
18.0
50.0
LY0013-0026
TU50-12
12.8
12.1
9.5
17.2
18.0
50.0
LY0013-0027
TU50-14
14.5
12.1
9.5
20.0
18.0
55.0
LY0013-0028
TU50-16
16.5
12.1
9.5
22.0
18.0
55.0
LY0013-0029
TU70-5
5.3
15.0
11.5
21.2
18.0
48.0
LY0013-0030
TU70-6
6.4
15.0
11.5
21.2
18.0
48.0
LY0013-0031
TU70-8
8.4
15.0
11.5
21.2
18.0
48.0
LY0013-0032
TU70-10
10.4
15.0
11.5
21.2
18.0
52.0
LY0013-0033
TU70-12
12.8
15.0
11.5
21.2
18.0
52.0
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0013-0034 |
TU 70 - 14 |
14.5 |
15.0 |
11.5 |
21.2 |
18.0 |
63.0 |
|
LY0013-0035 |
TU 70 - 16 |
16.5 |
15.0 |
11.5 |
21.2 |
18.0 |
63.0 |
|
LY0013-0036 |
TU 95 - 8 |
8.4 |
17.0 |
13.5 |
24.3 |
24.0 |
58.0 |
|
LY0013-0037 |
TU 95 - 10 |
10.4 |
17.0 |
13.5 |
24.3 |
24.0 |
58.0 |
|
LY0013-0038 |
TU 95 - 12 |
12.8 |
17.0 |
13.5 |
24.3 |
24.0 |
58.0 |
|
LY0013-0039 |
TU 95 - 14 |
14.5 |
17.0 |
13.5 |
24.3 |
24.0 |
69.0 |
|
LY0013-0040 |
TU 95 - 16 |
16.5 |
17.0 |
13.5 |
24.3 |
24.0 |
69.0 |
|
LY0013-0041 |
TU 120 - 8 |
8.4 |
19.0 |
15.0 |
27.2 |
27.0 |
73.0 |
|
LY0013-0042 |
TU 120 - 10 |
10.4 |
19.0 |
15.0 |
27.2 |
27.0 |
73.0 |
|
LY0013-0043 |
TU 120 - 12 |
12.8 |
19.0 |
15.0 |
27.2 |
27.0 |
73.0 |
|
LY0013-0044 |
TU 120 - 14 |
14.5 |
19.0 |
15.0 |
27.2 |
27.0 |
73.0 |
|
LY0013-0045 |
TU 120 - 16 |
16.5 |
19.0 |
15.0 |
27.2 |
27.0 |
73.0 |
|
LY0013-0046 |
TU 120 - 20 |
21.0 |
19.0 |
15.0 |
27.2 |
27.0 |
73.0 |
|
LY0013-0047 |
TU 150 - 8 |
8.4 |
21.0 |
16.5 |
30.0 |
27.0 |
78.0 |
|
LY0013-0048 |
TU 150 - 10 |
10.4 |
21.0 |
16.5 |
30.0 |
27.0 |
78.0 |
|
LY0013-0049 |
TU 150 - 12 |
12.8 |
21.0 |
16.5 |
30.0 |
27.0 |
78.0 |
|
LY0013-0050 |
TU 150 - 14 |
14.5 |
21.0 |
16.5 |
30.0 |
27.0 |
78.0 |
|
LY0013-0051 |
TU 150 - 16 |
16.5 |
21.0 |
16.5 |
30.0 |
27.0 |
78.0 |
|
LY0013-0052 |
TU 150 - 20 |
21.0 |
21.0 |
16.5 |
30.0 |
27.0 |
78.0 |
|
LY0013-0053 |
TU 185 - 10 |
10.4 |
23.0 |
18.5 |
33.5 |
30.0 |
82.0 |
|
LY0013-0054 |
TU 185 - 12 |
12.8 |
23.0 |
18.5 |
33.5 |
30.0 |
82.0 |
|
LY0013-0055 |
TU 185 - 14 |
14.5 |
23.0 |
18.5 |
33.5 |
30.0 |
82.0 |
|
LY0013-0056 |
TU 185 - 16 |
16.5 |
23.0 |
18.5 |
33.5 |
30.0 |
82.0 |
|
LY0013-0057 |
TU 185 - 20 |
21.0 |
23.0 |
18.5 |
33.5 |
30.0 |
82.0 |
|
LY0013-0058 |
TU 240 - 10 |
10.4 |
26.0 |
21.0 |
37.7 |
32.0 |
88.0 |
|
LY0013-0059 |
TU 240 - 12 |
12.8 |
26.0 |
21.0 |
37.7 |
32.0 |
88.0 |
|
LY0013-0060 |
TU 240 - 14 |
14.5 |
26.0 |
21.0 |
37.7 |
32.0 |
88.0 |
|
LY0013-0061 |
TU 240 - 16 |
16.5 |
26.0 |
21.0 |
37.7 |
32.0 |
88.0 |
|
LY0013-0062 |
TU 240 - 20 |
21.0 |
26.0 |
21.0 |
37.7 |
32.0 |
88.0 |
|
LY0013-0063 |
TU 300 - 10 |
10.4 |
28.0 |
23.0 |
41.0 |
37.0 |
97.0 |
|
LY0013-0064 |
TU 300 - 12 |
12.8 |
28.0 |
23.0 |
41.0 |
37.0 |
97.0 |
|
LY0013-0065 |
TU 300 - 14 |
14.5 |
28.0 |
23.0 |
41.0 |
37.0 |
97.0 |
|
LY0013-0066 |
TU 300 - 16 |
16.5 |
28.0 |
23.0 |
41.0 |
37.0 |
97.0 |
|
LY0013-0067 |
TU 300 - 20 |
21.0 |
28.0 |
23.0 |
41.0 |
37.0 |
97.0 |
