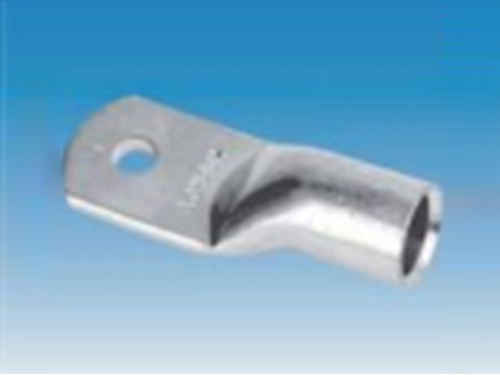

CL-H铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途： 端子就是用于实现电气连接的一种配件产品， 工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的， 它其实就是一段封在绝缘塑料里面的金属片， 两端都有孔可以插入导线， 有螺丝用于紧固或者松开。比如两根导线，有时需要连接， 有时又需要断开， 这时就可以用端子把它们连接起来， 并且可以随时断开， 而不必把它们焊接起来或者缠绕在一起， 很方便快捷。
|
PART NO |
ITEM NO |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0005-0001 |
CL 14 - H- 6 |
6.4 |
8.8 |
5.8 |
18.3 |
28.5 |
50.0 |
|
LY0005-0002 |
CL 22 - H- 8 |
8.4 |
11.3 |
7.7 |
18.3 |
28.5 |
52.0 |
|
LY0005-0003 |
CL 38 - H- 10 |
10.5 |
12.4 |
9.8 |
18.3 |
34.0 |
64.0 |
|
LY0005-0004 |
CL 38 - H- 12 |
13.0 |
12.4 |
9.8 |
18.3 |
34.0 |
64.0 |
|
LY0005-0005 |
CL 60 - H- 10 |
10.5 |
14.0 |
11.0 |
20.5 |
36.0 |
70.0 |
|
LY0005-0006 |
CL 60 - H- 12 |
13.0 |
14.0 |
11.0 |
20.5 |
36.0 |
70.0 |
|
LY0005-0007 |
CL 70 - H- 10 |
10.5 |
15.0 |
12.0 |
21.4 |
38.0 |
72.0 |
|
LY0005-0008 |
CL 70 - H- 12 |
13.0 |
15.0 |
12.0 |
21.4 |
38.0 |
72.0 |
|
LY0005-0009 |
CL 80 - H- 12 |
13.0 |
16.0 |
13.0 |
23.2 |
38.0 |
75.0 |
|
LY0005-0010 |
CL 100 - H- 12 |
13.0 |
18.0 |
14.0 |
26.0 |
40.0 |
75.0 |
|
LY0005-0011 |
CL 125 - H- 12 |
13.0 |
20.0 |
16.0 |
28.0 |
40.0 |
85.0 |
|
LY0005-0012 |
CL 150 - H- 12 |
13.0 |
22.0 |
17.0 |
31.5 |
46.0 |
94.0 |
|
LY0005-0013 |
CL 180 - H- 12 |
13.0 |
23.0 |
18.2 |
33.0 |
46.0 |
98.0 |
|
LY0005-0014 |
CL 200 - H- 12 |
13.0 |
26.0 |
20.0 |
37.0 |
48.0 |
104.0 |
|
LY0005-0015 |
CL 250 - H- 12 |
13.0 |
28.0 |
22.0 |
41.0 |
48.0 |
114.0 |
|
LY0005-0016 |
CL 325 - H- 12 |
13.0 |
32.0 |
25.0 |
46.0 |
50.0 |
118.0 |
|
LY0005-0017 |
CL 400 - H- 12 |
13.0 |
37.0 |
30.0 |
54.0 |
60.0 |
130.0 |
|
LY0005-0018 |
CL 500 - H- 12 |
13.0 |
40.0 |
31.0 |
57.5 |
60.0 |
150.0 |
|
LY0005-0019 |
B- CL 14 - H- 6 |
6.4 |
8.3 |
5.8 |
18.3 |
28.5 |
50.0 |
|
LY0005-0020 |
B- CL 22 - H- 8 |
8.4 |
10.7 |
7.7 |
18.3 |
28.5 |
52.0 |
|
LY0005-0021 |
B- CL 38 - H- 10 |
10.5 |
11.9 |
9.8 |
17.2 |
34.0 |
64.0 |
|
LY0005-0022 |
B- CL 38 - H- 12 |
13.0 |
11.9 |
9.8 |
17.2 |
34.0 |
64.0 |
|
LY0005-0023 |
B- CL 60 - H- 10 |
10.5 |
13.5 |
11.0 |
20.0 |
36.0 |
70.0 |
|
LY0005-0024 |
B- CL 60 - H- 12 |
13.0 |
13.5 |
11.0 |
20.0 |
36.0 |
70.0 |
|
LY0005-0025 |
B- CL 70 - H- 10 |
10.5 |
14.5 |
12.0 |
21.4 |
38.0 |
72.0 |
|
LY0005-0026 |
B- CL 70 - H- 12 |
13.0 |
14.5 |
12.0 |
21.4 |
38.0 |
72.0 |
|
LY0005-0027 |
B- CL 80 - H- 12 |
13.0 |
15.5 |
13.0 |
23.2 |
38.0 |
75.0 |
|
LY0005-0028 |
B- CL 100 - H- 12 |
13.0 |
17.3 |
14.0 |
25.5 |
40.0 |
75.0 |
|
LY0005-0029 |
B- CL 125 - H- 12 |
13.0 |
19.3 |
16.0 |
28.0 |
40.0 |
85.0 |
|
LY0005-0030 |
B- CL 150 - H- 12 |
13.0 |
21.1 |
17.0 |
30.5 |
46.0 |
94.0 |
|
LY0005-0031 |
B- CL 180 - H- 12 |
13.0 |
22.1 |
18.2 |
32.5 |
46.0 |
98.0 |
|
LY0005-0032 |
B- CL 200 - H- 12 |
13.0 |
24.9 |
20.0 |
36.0 |
48.0 |
104.0 |
|
LY0005-0033 |
B- CL 250 - H- 12 |
13.0 |
26.9 |
22.0 |
39.5 |
48.0 |
114.0 |
|
LY0005-0034 |
B- CL 325 - H- 12 |
13.0 |
30.7 |
25.0 |
45.0 |
50.0 |
118.0 |
|
LY0005-0035 |
B- CL 400 - H- 12 |
13.0 |
35.7 |
30.0 |
54.0 |
60.0 |
130.0 |
|
LY0005-0036 |
B- CL 500 - H- 12 |
13.0 |
38.4 |
31.0 |
56.0 |
60.0 |
150.0 |
