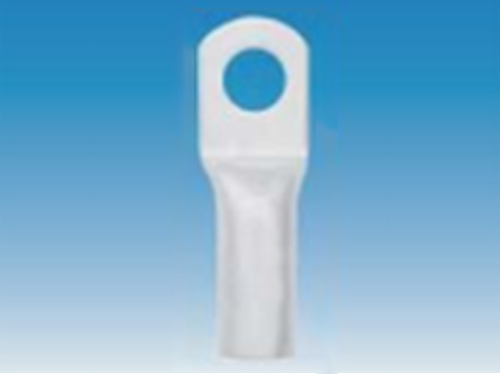

DIN46235铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途：端子就是用于实现电气连接的一种配件产品，工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的，它其实就是一段封在绝缘塑料里面的金属片，两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线， 有时需要连接，有时又需要断开，这时就可以用端子把它们连接起来，并且可以随时断开，而不必把它们焊接起来或者缠绕在一起，很方便快捷。
|
PART N O |
ITEM N O |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0012-2001 |
DIN6-5 |
5.3 |
5.5 |
3.8 |
8.5 |
10.0 |
30.5 |
|
LY0012-2002 |
DIN6-6 |
6.4 |
5.5 |
3.8 |
8.5 |
10.0 |
31.5 |
|
LY0012-2003 |
DIN6-8 |
8.4 |
5.5 |
3.8 |
13.0 |
10.0 |
34.0 |
|
LY0012-2004 |
DIN10-5 |
5.3 |
6.0 |
4.5 |
9.0 |
10.0 |
34.0 |
|
LY0012-2005 |
DIN10-6 |
6.4 |
6.0 |
4.5 |
9.0 |
10.0 |
34.5 |
|
LY0012-2006 |
DIN10-8 |
8.4 |
6.0 |
4.5 |
13.0 |
10.0 |
37.0 |
|
LY0012-2007 |
DIN10-10 |
10.5 |
6.0 |
4.5 |
15.0 |
10.0 |
39.0 |
|
LY0012-2008 |
DIN16-6 |
6.4 |
8.5 |
5.5 |
13.0 |
20.0 |
43.5 |
|
LY0012-2009 |
DIN16-8 |
8.4 |
8.5 |
5.5 |
13.0 |
20.0 |
46.0 |
|
LY0012-2010 |
DIN16-10 |
10.5 |
8.5 |
5.5 |
17.0 |
20.0 |
48.0 |
|
LY0012-2011 |
DIN16-12 |
13.0 |
8.5 |
5.5 |
18.0 |
20.0 |
49.0 |
|
LY0012-2012 |
DIN25-6 |
6.4 |
10.0 |
7.0 |
14.0 |
20.0 |
45.5 |
|
LY0012-2013 |
DIN25-8 |
8.4 |
10.0 |
7.0 |
16.0 |
20.0 |
48.0 |
|
LY0012-2014 |
DIN25-10 |
10.5 |
10.0 |
7.0 |
17.0 |
20.0 |
50.0 |
|
LY0012-2015 |
DIN25-12 |
13.0 |
10.0 |
7.0 |
19.0 |
20.0 |
51.0 |
|
LY0012-2016 |
DIN35-6 |
6.4 |
12.5 |
8.2 |
17.0 |
20.0 |
49.5 |
|
LY0012-2017 |
DIN35-8 |
8.4 |
12.5 |
8.2 |
17.0 |
20.0 |
52.0 |
|
LY0012-2018 |
DIN35-10 |
10.5 |
12.5 |
8.2 |
19.0 |
20.0 |
54.0 |
|
LY0012-2019 |
DIN35-12 |
13.0 |
12.5 |
8.2 |
21.0 |
20.0 |
55.0 |
|
LY0012-2020 |
DIN35-14 |
15.0 |
12.5 |
8.2 |
21.0 |
20.0 |
56.5 |
|
LY0012-2021 |
DIN50-8 |
8.4 |
14.5 |
10.0 |
20.0 |
28.0 |
62.0 |
|
LY0012-2022 |
DIN50-10 |
10.5 |
14.5 |
10.0 |
22.0 |
28.0 |
64.0 |
|
LY0012-2023 |
DIN50-12 |
13.0 |
14.5 |
10.0 |
24.0 |
28.0 |
65.0 |
|
LY0012-2024 |
DIN50-14 |
15.0 |
14.5 |
10.0 |
24.0 |
28.0 |
66.5 |
|
LY0012-2025 |
DIN50-16 |
17.0 |
14.5 |
10.0 |
28.0 |
28.0 |
68.0 |
|
LY0012-2026 |
DIN70-8 |
8.4 |
16.5 |
11.5 |
24.0 |
28.0 |
65.0 |
|
LY0012-2027 |
DIN70-10 |
10.5 |
16.5 |
11.5 |
24.0 |
28.0 |
67.0 |
|
LY0012-2028 |
DIN70-12 |
13.0 |
16.5 |
11.5 |
24.0 |
28.0 |
68.0 |
|
LY0012-2029 |
DIN70-14 |
15.0 |
16.5 |
11.5 |
24.0 |
28.0 |
69.5 |
|
LY0012-2030 |
DIN70-16 |
17.0 |
16.5 |
11.5 |
30.0 |
28.0 |
71.0 |
|
LY0012-2031 |
DIN95-8 |
8.4 |
19.0 |
13.5 |
28.0 |
35.0 |
77.0 |
|
LY0012-2032 |
DIN95-10 |
10.5 |
19.0 |
13.5 |
28.0 |
35.0 |
77.0 |
|
LY0012-2033 |
DIN95-12 |
13.0 |
19.0 |
13.5 |
28.0 |
35.0 |
78.0 |
|
LY0012-2034 |
DIN95-14 |
15.0 |
19.0 |
13.5 |
28.0 |
35.0 |
79.5 |
|
PART N O |
ITEM N O |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0012-2035 |
DIN95-16 |
17.0 |
19.0 |
13.5 |
32.0 |
35.0 |
81.0 |
|
LY0012-2036 |
DIN120-10 |
10.5 |
21.0 |
15.5 |
32.0 |
35.0 |
85.0 |
|
LY0012-2037 |
DIN120-12 |
13.0 |
21.0 |
15.5 |
32.0 |
35.0 |
86.0 |
|
LY0012-2038 |
DIN120-14 |
15.0 |
21.0 |
15.5 |
32.0 |
35.0 |
88.0 |
|
LY0012-2039 |
DIN120-16 |
17.0 |
21.0 |
15.5 |
32.0 |
35.0 |
89.0 |
|
LY0012-2040 |
DIN120-20 |
21.0 |
21.0 |
15.5 |
38.0 |
35.0 |
91.0 |
|
LY0012-2041 |
DIN150-10 |
10.5 |
23.5 |
17.0 |
34.0 |
35.0 |
93.0 |
|
LY0012-2042 |
DIN150-12 |
13.0 |
23.5 |
17.0 |
34.0 |
35.0 |
94.0 |
|
LY0012-2043 |
DIN150-14 |
15.0 |
23.5 |
17.0 |
34.0 |
35.0 |
97.0 |
|
LY0012-2044 |
DIN150-16 |
17.0 |
23.5 |
17.0 |
34.0 |
35.0 |
97.0 |
|
LY0012-2045 |
DIN150-20 |
21.0 |
23.5 |
17.0 |
40.0 |
35.0 |
99.0 |
|
LY0012-2046 |
DIN185-10 |
10.5 |
25.5 |
19.0 |
37.0 |
40.0 |
97.0 |
|
LY0012-2047 |
DIN185-12 |
13.0 |
25.5 |
19.0 |
37.0 |
40.0 |
98.0 |
|
LY0012-2048 |
DIN185-14 |
15.0 |
25.5 |
19.0 |
37.0 |
40.0 |
101.0 |
|
LY0012-2049 |
DIN185-16 |
17.0 |
25.5 |
19.0 |
37.0 |
40.0 |
101.0 |
|
LY0012-2050 |
DIN185-20 |
21.0 |
25.5 |
19.0 |
40.0 |
40.0 |
103.0 |
|
LY0012-2051 |
DIN240-12 |
13.0 |
29.0 |
21.5 |
42.0 |
40.0 |
108.0 |
|
LY0012-2052 |
DIN240-14 |
15.0 |
29.0 |
21.5 |
42.0 |
40.0 |
111.0 |
|
LY0012-2053 |
DIN240-16 |
17.0 |
29.0 |
21.5 |
42.0 |
40.0 |
111.0 |
|
LY0012-2054 |
DIN240-20 |
21.0 |
29.0 |
21.5 |
45.0 |
40.0 |
113.0 |
|
LY0012-2055 |
DIN300-12 |
13.0 |
32.0 |
24.5 |
46.0 |
50.0 |
119.0 |
|
LY0012-2056 |
DIN300-14 |
15.0 |
32.0 |
24.5 |
46.0 |
50.0 |
119.0 |
|
LY0012-2057 |
DIN300-16 |
17.0 |
32.0 |
24.5 |
46.0 |
50.0 |
119.0 |
|
LY0012-2058 |
DIN300-20 |
21.0 |
32.0 |
24.5 |
46.0 |
50.0 |
122.0 |
|
LY0012-2059 |
DIN400-14 |
15.0 |
38.5 |
27.5 |
55.0 |
70.0 |
140.0 |
|
LY0012-2060 |
DIN400-16 |
17.0 |
38.5 |
27.5 |
55.0 |
70.0 |
140.0 |
|
LY0012-2061 |
DIN400-20 |
21.0 |
38.5 |
27.5 |
55.0 |
70.0 |
140.0 |
|
LY0012-2062 |
DIN500-16 |
17.0 |
42.0 |
31.0 |
60.0 |
70.0 |
150.0 |
|
LY0012-2063 |
DIN500-20 |
21.0 |
42.0 |
31.0 |
60.0 |
70.0 |
150.0 |
|
LY0012-2064 |
DIN625-16 |
17.0 |
44.0 |
34.5 |
64.0 |
80.0 |
160.0 |
|
LY0012-2065 |
DIN625-20 |
21.0 |
44.0 |
34.5 |
64.0 |
80.0 |
160.0 |
|
LY0012-2066 |
DIN800-16 |
17.0 |
52.0 |
40.0 |
75.0 |
100.0 |
195.0 |
|
LY0012-2067 |
DIN800-20 |
21.0 |
52.0 |
40.0 |
75.0 |
100.0 |
195.0 |
|
LY0012-2068 |
DIN1000-16 |
17.0 |
58.0 |
44.0 |
85.0 |
100.0 |
195.0 |
|
LY0012-2069 |
DIN1000-20 |
21.0 |
58.0 |
44.0 |
85.0 |
100.0 |
195.0 |
