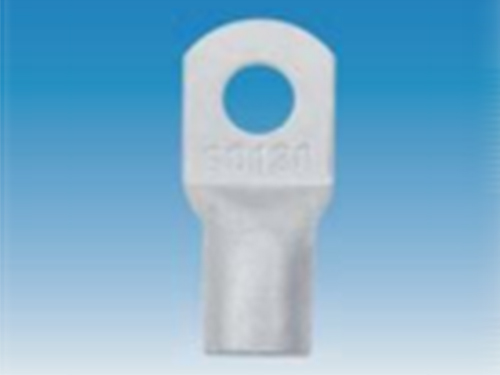

SC-NH无检测孔铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途： 端子就是用于实现电气连接的一种配件产品， 工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的， 它其实就是一段封在绝缘塑料里面的金属片， 两端都有孔可以插入导线，有螺丝用于紧固或者松开。比如两根导线，有时需要连接， 有时又需要断开， 这时就可以用端子把它们连接起来， 并且可以随时断开， 而不必把它们焊接起来或者缠绕在一起，很方便快捷。
PART NO
ITEM NO
φE
φD
DIMENSIONS
2015-2018
φd
W
B
L
LY0002-1001
S C 1 6 - 5 N H
5.2
7.1
5.4
12.0
12.0
30.0
LY0002-1002
S C 1 6 - 6 N H
6.5
7.1
5.4
12.0
12.0
30.0
LY0002-1003
S C 1 6 - 8 N H
8.4
7.1
5.4
12.5
12.0
30.0
LY0002-1004
SC 16 - 10 NH
10.5
7.1
5.4
16.0
12.0
33.0
LY0002-1005
SC 16 - 12 NH
13.0
7.1
5.4
17.0
12.0
35.0
LY0002-1006
S C 2 5 - 5 N H
5.2
8.8
6.8
13.0
12.0
33.0
LY0002-1007
S C 2 5 - 6 N H
6.5
8.8
6.8
13.0
12.0
33.0
LY0002-1008
S C 2 5 - 8 N H
8.4
8.8
6.8
15.0
12.0
33.0
LY0002-1009
SC 25 - 10 NH
10.5
8.8
6.8
18.0
12.0
34.0
LY0002-1010
SC 25 - 12 NH
13.0
8.8
6.8
18.0
12.0
35.0
LY0002-1011
SC 25 - 14 NH
15.0
8.8
6.8
20.0
12.0
38.0
LY0002-1012
S C 3 5 - 5 N H
5.2
10.6
8.2
16.0
14.0
38.0
LY0002-1013
S C 3 5 - 6 N H
6.5
10.6
8.2
16.0
14.0
38.0
LY0002-1014
S C 3 5 - 8 N H
8.4
10.6
8.2
16.0
14.0
38.0
LY0002-1015
SC 35 - 10 NH
10.5
10.6
8.2
18.0
14.0
39.0
LY0002-1016
SC 35 - 12 NH
13.0
10.6
8.2
19.0
14.0
40.5
LY0002-1017
SC 35 - 14 NH
15.0
10.6
8.2
20.0
14.0
42.0
LY0002-1018
S C 5 0 - 6 N H
6.5
12.4
9.5
17.8
16.0
45.0
LY0002-1019
S C 5 0 - 8 N H
8.4
12.4
9.5
17.8
16.0
45.0
LY0002-1020
SC 50 - 10 NH
10.5
12.4
9.5
17.8
16.0
45.0
LY0002-1021
SC 50 - 12 NH
13.0
12.4
9.5
20.0
16.0
45.0
LY0002-1022
SC 50 - 14 NH
15.0
12.4
9.5
22.0
16.0
46.0
LY0002-1023
SC 50 - 16 NH
17.0
12.4
9.5
24.0
16.0
47.0
LY0002-1024
S C 7 0 - 8 N H
8.4
14.7
11.2
21.0
18.0
50.0
LY0002-1025
SC 70 - 10 NH
10.5
14.7
11.2
21.0
18.0
50.0
LY0002-1026
SC 70 - 12 NH
13.0
14.7
11.2
21.0
18.0
50.0
LY0002-1027
SC 70 - 14 NH
15.0
14.7
11.2
21.0
18.0
50.0
LY0002-1028
SC 70 - 16 NH
17.0
14.7
11.2
25.0
18.0
51.0
LY0002-1029
S C 9 5 - 8 N H
8.4
17.4
13.5
25.0
20.0
55.0
LY0002-1030
SC 95 - 10 NH
10.5
17.4
13.5
25.0
20.0
55.0
LY0002-1031
SC 95 - 12 NH
13.0
17.4
13.5
25.0
20.0
55.0
LY0002-1032
SC 95 - 14 NH
15.0
17.4
13.5
25.0
20.0
55.0
LY0002-1033
SC 95 - 16 NH
17.0
17.4
13.5
25.0
20.0
55.0
LY0002-1034
SC 120 - 8 NH
8.4
19.4
15.0
28.0
22.0
63.0
LY0002-1035
SC 120 - 10 NH
10.5
19.4
15.0
28.0
22.0
63.0
LY0002-1036
SC 120 - 12 NH
13.0
19.4
15.0
28.0
22.0
63.0
LY0002-1037
SC 120 - 14 NH
15.0
19.4
15.0
28.0
22.0
63.0
PART NO
ITEM NO
φE
φD
DIMENSIONS
2015-2018
φd
W
B
L
LY0002-1038
SC 120 - 16 NH
17.0
19.4
15.0
28.0
22.0
63.0
LY0002-1039
SC 120 - 20 NH
21.0
19.4
15.0
28.0
22.0
63.0
LY0002-1040
SC 150 - 8 NH
8.4
21.2
16.5
30.5
26.0
70.0
LY0002-1041
SC 150 - 10 NH
10.5
21.2
16.5
30.5
26.0
70.0
LY0002-1042
SC 150 - 12 NH
13.0
21.2
16.5
30.5
26.0
70.0
LY0002-1043
SC 150 - 14 NH
15.0
21.2
16.5
30.5
26.0
70.0
LY0002-1044
SC 150 - 16 NH
17.0
21.2
16.5
30.5
26.0
70.0
LY0002-1045
SC 150 - 20 NH
21.0
21.2
16.5
30.5
26.0
70.0
LY0002-1046
SC 185 - 10 NH
10.5
23.5
18.5
34.0
32.0
75.0
LY0002-1047
SC 185 - 12 NH
13.0
23.5
18.5
34.0
32.0
75.0
LY0002-1048
SC 185 - 14 NH
15.0
23.5
18.5
34.0
32.0
75.0
LY0002-1049
SC 185 - 16 NH
17.0
23.5
18.5
34.0
32.0
75.0
LY0002-1050
SC 185 - 20 NH
21.0
23.5
18.5
34.0
32.0
75.0
LY0002-1051
SC 240 - 10 NH
10.5
26.5
21.0
38.5
38.0
90.0
LY0002-1052
SC 240 - 12 NH
13.0
26.5
21.0
38.5
38.0
90.0
LY0002-1053
SC 240 - 14 NH
15.0
26.5
21.0
38.5
38.0
90.0
LY0002-1054
SC 240 - 16 NH
17.0
26.5
21.0
38.5
38.0
90.0
LY0002-1055
SC 240 - 20 NH
21.0
26.5
21.0
38.5
38.0
90.0
LY0002-1056
SC 300 - 10 NH
10.5
30.0
23.5
43.0
42.0
98.0
LY0002-1057
SC 300 - 12 NH
13.0
30.0
23.5
43.0
42.0
98.0
LY0002-1058
SC 300 - 14 NH
15.0
30.0
23.5
43.0
42.0
98.0
LY0002-1059
SC 300 - 16 NH
17.0
30.0
23.5
43.0
42.0
98.0
LY0002-1060
SC 300 - 20 NH
21.0
30.0
23.5
43.0
42.0
98.0
LY0002-1061
SC 400 - 10 NH
10.5
36.5
28.5
52.0
44.0
110.0
LY0002-1062
SC 400 - 12 NH
13.0
36.5
28.5
52.0
44.0
110.0
LY0002-1063
SC 400 - 14 NH
15.0
36.5
28.5
52.0
44.0
110.0
LY0002-1064
SC 400 - 16 NH
17.0
36.5
28.5
52.0
44.0
110.0
LY0002-1065
SC 400 - 20 NH
21.0
36.5
28.5
52.0
44.0
110.0
LY0002-1066
SC 500 - 10 NH
10.5
39.0
30.0
56.0
48.0
120.0
LY0002-1067
SC 500 - 12 NH
13.0
39.0
30.0
56.0
48.0
120.0
LY0002-1068
SC 500 - 14 NH
15.0
39.0
30.0
56.0
48.0
120.0
LY0002-1069
SC 500 - 16 NH
17.0
39.0
30.0
56.0
48.0
120.0
LY0002-1070
SC 500 - 20 NH
21.0
39.0
30.0
56.0
48.0
120.0
LY0002-1071
SC 630 - 10 NH
10.5
45.0
35.0
65.0
56.0
140.0
LY0002-1072
SC 630 - 12 NH
13.0
45.0
35.0
65.0
56.0
140.0
LY0002-1073
SC 630 - 14 NH
15.0
45.0
35.0
65.0
56.0
140.0
LY0002-1074
SC 630 - 16 NH
17.0
45.0
35.0
65.0
56.0
140.0
LY0002-1075
SC 630 - 20 NH
21.0
45.0
35.0
65.0
56.0
140.0
