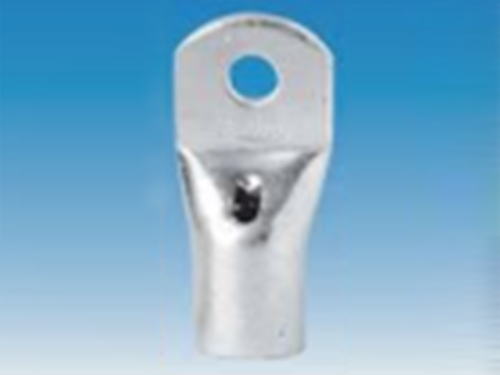

T型铜管端子
- 咨询热线：0769-87330059 服务热线：18925865191 产品型号：
雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191雷音（深圳）电气有限公司
Laiyin (Shenzhen) Electric Co., Ltd.全国服务热线：
18925865191
⊙材质：紫铜
⊙含量： 铜99.9%以上
⊙表面：镀锡
⊙用途： 端子就是用于实现电气连接的一种配件产品， 工业上划分为连接器的范畴。端子是为了方便导线的连接而应用的， 它其实就是一段封在绝缘塑料里面的金属片，
两端都有孔可以插入导线， 有螺丝用于紧固或者松开。 比如两根导线， 有时需要连接， 有时又需要断开，这时就可以用端子把它们连接起来， 并且可以随时断开， 而不必把它们焊接起来或者缠绕在一起，
很方便快捷。
|
PART N O |
ITEM N O |
φE |
φD |
DIMENSIONS |
|||
|
2015-2018 |
φd |
W |
B |
L |
|||
|
LY0007-0001 |
DT1.5-5 |
5.2 |
4.0 |
2.2 |
8.0 |
10.0 |
23.0 |
|
LY0007-0002 |
DT2.5-4 |
4.2 |
4.5 |
2.9 |
8.0 |
13.0 |
27.0 |
|
LY0007-0003 |
DT2.5-5 |
5.2 |
4.5 |
2.9 |
8.0 |
13.0 |
27.0 |
|
LY0007-0004 |
DT2.5-6 |
6.4 |
4.5 |
2.9 |
10.0 |
13.0 |
27.0 |
|
LY0007-0005 |
DT 4 - 5 |
5.2 |
5.2 |
3.6 |
10.0 |
13.0 |
28.0 |
|
LY0007-0006 |
DT 4 - 6 |
6.4 |
5.2 |
3.6 |
10.0 |
13.0 |
28.0 |
|
LY0007-0007 |
DT 6 - 5 |
5.2 |
6.0 |
4.2 |
10.0 |
17.0 |
35.0 |
|
LY0007-0008 |
DT 6 - 6 |
6.4 |
6.0 |
4.2 |
10.0 |
17.0 |
35.0 |
|
LY0007-0009 |
DT 6 - 8 |
8.4 |
6.0 |
4.2 |
12.0 |
17.0 |
35.0 |
|
LY0007-0010 |
DT 10 - 6 |
6.4 |
7.0 |
5.0 |
12.4 |
17.0 |
36.0 |
|
LY0007-0011 |
DT 10 - 8 |
8.4 |
7.0 |
5.0 |
12.4 |
17.0 |
36.0 |
|
LY0007-0012 |
DT 16 - 6 |
6.4 |
9.0 |
6.0 |
14.0 |
32.0 |
58.0 |
|
LY0007-0013 |
DT 16 - 8 |
8.4 |
9.0 |
6.0 |
14.0 |
32.0 |
58.0 |
|
LY0007-0014 |
DT 25 - 6 |
6.4 |
10.0 |
7.0 |
15.0 |
32.0 |
58.0 |
|
LY0007-0015 |
DT 25 - 8 |
8.4 |
10.0 |
7.0 |
15.0 |
32.0 |
58.0 |
|
LY0007-0016 |
DT 25 - 10 |
10.5 |
10.0 |
7.0 |
17.5 |
32.0 |
58.0 |
|
LY0007-0017 |
DT 35 - 6 |
6.4 |
12.0 |
9.0 |
17.1 |
36.0 |
62.0 |
|
LY0007-0018 |
DT 35 - 8 |
8.4 |
12.0 |
9.0 |
17.1 |
36.0 |
62.0 |
|
LY0007-0019 |
DT 35 - 10 |
10.5 |
12.0 |
9.0 |
18.0 |
36.0 |
62.0 |
|
LY0007-0020 |
DT 50 - 8 |
8.4 |
14.0 |
10.0 |
20.0 |
40.0 |
72.0 |
|
LY0007-0021 |
DT 50 - 10 |
10.5 |
14.0 |
10.0 |
20.0 |
40.0 |
72.0 |
|
LY0007-0022 |
DT 70 - 8 |
8.4 |
16.0 |
12.0 |
23.0 |
42.0 |
76.0 |
|
LY0007-0023 |
DT 70 - 10 |
10.5 |
16.0 |
12.0 |
23.0 |
42.0 |
76.0 |
|
LY0007-0024 |
DT 70 - 12 |
13.0 |
16.0 |
12.0 |
23.0 |
42.0 |
76.0 |
|
LY0007-0025 |
DT 95 - 10 |
10.5 |
18.0 |
14.0 |
26.0 |
44.0 |
84.0 |
|
LY0007-0026 |
DT 95 - 12 |
13.0 |
18.0 |
14.0 |
26.0 |
44.0 |
84.0 |
|
LY0007-0027 |
DT 120 - 12 |
13.0 |
21.0 |
16.0 |
30.0 |
46.0 |
90.0 |
|
LY0007-0028 |
DT 120 - 16 |
17.0 |
21.0 |
16.0 |
30.0 |
46.0 |
90.0 |
|
LY0007-0029 |
DT 150 - 12 |
13.0 |
23.0 |
17.0 |
33.0 |
50.0 |
98.0 |
|
LY0007-0030 |
DT 150 - 16 |
17.0 |
23.0 |
17.0 |
33.0 |
50.0 |
98.0 |
|
LY0007-0031 |
DT 185 - 12 |
13.0 |
25.0 |
19.0 |
36.0 |
52.0 |
101.0 |
|
LY0007-0032 |
DT 185 - 16 |
17.0 |
25.0 |
19.0 |
36.0 |
52.0 |
101.0 |
|
LY0007-0033 |
DT 240 - 12 |
13.0 |
28.0 |
21.6 |
40.0 |
52.0 |
110.0 |
|
LY0007-0034 |
DT 240 - 16 |
17.0 |
28.0 |
21.6 |
40.0 |
52.0 |
112.0 |
|
LY0007-0035 |
DT 240 - 20 |
21.0 |
28.0 |
21.6 |
40.0 |
52.0 |
112.0 |
|
LY0007-0036 |
DT 300 - 16 |
17.0 |
31.0 |
24.0 |
45.0 |
58.0 |
116.0 |
|
LY0007-0037 |
DT 300 - 20 |
21.0 |
31.0 |
24.0 |
45.0 |
58.0 |
120.0 |
|
LY0007-0038 |
DT 400 - 16 |
17.0 |
36.5 |
28.5 |
52.0 |
66.0 |
126.0 |
|
LY0007-0039 |
DT 400 - 20 |
21.0 |
36.5 |
28.5 |
52.0 |
66.0 |
131.0 |
|
LY0007-0040 |
DT 500 - 16 |
17.0 |
39.0 |
30.5 |
56.0 |
70.0 |
141.0 |
|
LY0007-0041 |
DT 500 - 20 |
21.0 |
39.0 |
30.5 |
56.0 |
70.0 |
146.0 |
|
LY0007-0042 |
DT 630 - 20 |
21.0 |
45.0 |
35.5 |
65.0 |
80.0 |
168.0 |
