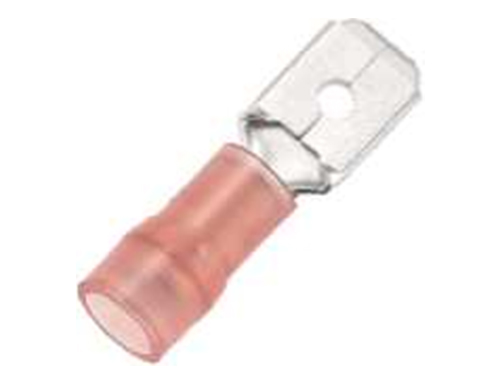

MALE QUICK DISCONNECTS
NYLON - INSULATED (DOUBLE CRIMP)
Material
Insulation: Nylon 尼龙
Metallic Sleeve: Copper 易进型铜套
Terminal Body: Brass 黄铜
Plating: Tin 镀锡
|
电线规格 WIRE RANGE |
型号 ITEM NO. |
接插规格 NEMA TAB |
尺寸 DIMENSION mm(inch) |
包装/只 QTY BAG |
|||||||
|
mma (A.W.G.) |
Thickness X Width mm inch |
W |
F |
L |
B |
D |
d1 |
T |
|||
|
0.5-1.5 (22-16) |
MDNYD1-110(5) |
0.5X2.8 |
.020X.110 |
2.8 (.110) |
6.5 (.256) |
19.5 (.768) |
11.0 (.433) |
4.1 (.161) |
1.7 (.067) |
0.5 (.020) |
1000 |
|
MDNYD1-110(8) |
0.8X2.8 |
.032X.110 |
0.4 (.016) |
||||||||
|
MDNYD1-187(5) |
0.5X4.75 |
.020X.187 |
4.8 (.189) |
6.5 (.256) |
20.0 (.787) |
0.5 (.020) |
|||||
|
MDNYD1-187(8) |
0.8X4.75 |
.032X.187 |
6.7 (.264) |
0.4 (.016) |
|||||||
|
MDNYD1-250 |
0.8X6.35 |
.032 X.250 |
6.35(.250) |
7.7 (.303) |
22.0 (.866) |
||||||
|
1.5-2.5 (16-14) |
MDNYD2・187(5) |
0.5X4.75 |
.020X.187 |
4.8 (.189) |
6.5 (.256) |
20.0 (.787) |
11.0 (.433) |
5.0 (.197) |
2.3 (.091) |
0.5 (.020) |
1000 |
|
MDNYD2-187(8) |
0.8X4.75 |
.032X.187 |
6.7 (.264) |
0.4 (.016) |
|||||||
|
MDNYD2-250 |
0.8X6.35 |
.032 X.250 |
6.35(.250) |
7.7 (.303) |
22.0 (.866) |
||||||
|
4-6 (12-10) |
MDNYD5-250 |
0.8X6.35 |
.032 X.250 |
6.35(.250) |
7.7 (.303) |
24.0 (.945) |
13.0 (.512) |
6.3 (.248) |
3.4 (.134) |
0.4 (.016) |
500 |
